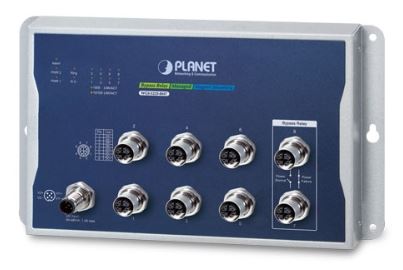

PLANET WGS-5225-8MT on teollisuuskäyttöön suunniteltu 8-porttinen (IP40 + M12 liittimet) hallittava Ethernet kytkin laajennetulla käyttölämpötila-alueella.

Pakkaus sisältä Ethernet-kytkimen lisäksi 8-pin M12-to-RJ45 UTP kaapelin (2m), M12 5-pin A-coded female virtakaapelin (1.2m), Wall-mount Kit, DIN-rail Kit, Magnet Kit, 8x M12 Female Dust Cap, M12 Power Waterproof Cap ja englanninkielisen pikaoppaan.

Tekniset tiedot
• 8x 10/100/1000BASE-T, vibration-proof and dustproof M12 X-coded female connectors
• 1 pair of bypass protection
• IP40-rated metal case
• Redundant power design:
– 9 to 48VDC, redundant power with reverse polarity protection
– Active-active redundant power failure protection
– Backup of catastrophic power failure on one supply
– Fault tolerance and resilience
• DIN-rail and wall-mount designs
• Supports 6000V DC Ethernet ESD protection
• -40…+75C operating temperature
• Modbus TCP for real-time monitoring in SCADA system
• IEEE 1588v2 PTP (Precision Time Protocol)
• Layer 3 IP Routing Features
• Supports maximum 32 static routes and route summarization
• High performance of Store-and-Forward architecture, and runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
• Storm control support:
– Broadcast/Multicast/Unicast
• Supports VLAN:
– IEEE 802.1Q tagged VLAN
– Provides Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
– Private VLAN Edge (PVE)
– Protocol-based VLAN
– MAC-based VLAN
– IP subnet-based VLAN
– Voice VLAN
– GVRP (GARP VLAN Registration Protocol)
• Supports Spanning Tree Protocol:
– IEEE 802.1D Spanning Tree Protocol (STP)
– IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
– IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
– BPDU Guard
• Supports Link Aggregation:
– 802.3ad Link Aggregation Control Protocol (LACP)
– Cisco ether-channel (static trunk)
– Maximum 4 trunk groups, with 8 ports for each trunk
– Up to 16Gbps bandwidth (full duplex mode)
• Provides port mirror (many-to-1)
• Port mirroring monitors the incoming or outgoing traffic on a particular port
• Loop protection to avoid broadcast loops
• Supports ITU-T G.8032 ERPS (Ethernet Ring Protection Switching)
• Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
• Link Layer Discovery Protocol (LLDP)
• Quality of Service
• Ingress shaper and egress rate limit per port bandwidth control
• 8 priority queues on all switch ports
• Traffic classification:
– IEEE 802.1p CoS
– ToS/DSCP/IP precedence of IPv4/IPv6 packets
– IP TCP/UDP port number
– Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Traffic-policing on the switch port
• DSCP remarking
• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD snooping v1 and v2
• Querier mode support
• IPv4 IGMP snooping port filtering
• IPv6 MLD snooping port filtering
• MVR (Multicast VLAN Registration)
• Authentication:
– IEEE 802.1x port-based/MAC-based network access authentication
– IEEE 802.1x authentication with guest VLAN
– Built-in RADIUS client to cooperate with the RADIUS servers
– RADIUS/TACACS+ users access authentication
• Access Control List:
– IP-based Access Control List (ACL)
– MAC-based Access Control List (ACL)
• Source MAC/IP address binding
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IP address access management to prevent unauthorized intruder
• IPv4 and IPv6 dual stack management
• Switch Management Interfaces:
– Telnet command line interface
– Web switch management
– SNMP v1, v2c, and v3 switch management
– SSHv2 and TLSv1.2 secure access
• SNMP Management:
– Four RMON groups (history, statistics, alarms, and events)
– SNMP trap for interface Link Up and Link Down notification
• IPv6 address/NTP management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance:
– Firmware upload/download via HTTP/TFTP
– Reset button for system reboot or reset to factory default
– Dual images
• DHCP relay and option 82
• DHCP server
• User privilege levels control
• NTP (Network Time Protocol)
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• Network diagnostic:
– Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
– ICMPv6/ICMPv4 remote ping
• SMTP, Syslog and SNMP trap remote alarm
• System Log
• PLANET UNI-NMS (Universal Network Management) and Smart
• Discovery Utility for deployment management
• Dimensions: 245x140x24.4mm
• Weight: 1000g
• Power Consumpton:
– System on: Max. 7.68W / 26.21BTU
– Full load: Max. 11.04W / 37.67BTU
• Compliance: FCC Part 15 Class A, CE
