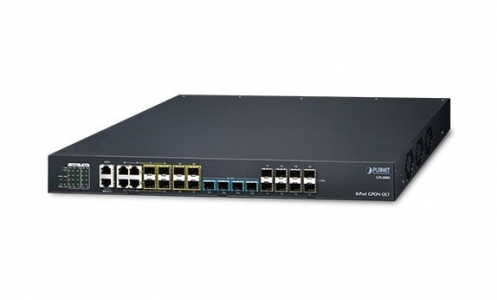

PLANET GPL-8000 on GPON -keskitin, joka on varustettu 8x GPON OLT SFP -portilla, 4x 10/100/100 Ethernet-portilla, 4x gigabitin TP/SFP-yhdistelmäportilla, 4x gigabitin SFP-portilla, 4x 10 gigabitin SFP+ -portilla, sekä yhdellä hallintaportilla.

GPL-8000 noudattaa ITU-T G.984/G.988 -standardeja ja täyttääGPON OLT -päätelaitteiden tekniset vaatimukset verkkoyhteyksissä. Sen asennus ja ylläpito on helppoa, ja semahdollistaa GPON-verkon käyttöönoton jopa 1024 ONU- ja HGU-laitteelle, tarjoten tehokkaita GPON-ratkaisuja ja kätevää hallintaa kuituoptiselle laajakaistaverkolle.

Tekniset tiedot:
• 8x GPON OLT SFP slots
• Up to 2.5Gbit/s downstream and 1.25Gbit/s upstream
• Maximum transfer distance of up to 20km
• Each PON port supports up to 128 ONT/HGU
• Compliant with G.984/G.988
• 4x 10/100/1000BASE-T RJ45 copper ports
• 8x 100/1000BASE-X SFP slots
• 4x 10GBASE-SR/LR SFP+ slots
• RJ45 to DB9 console interface for switch basic management and setup
• One 10/100BASE-TX Management port
• User-friendly GUI management
• 2 control interfaces
– Out-of-Band IP – the management RJ45 port
– In-Band IP – the Gigabit TP, SFP and 10G SFP+ uplink ports
• Supports ONT/HGU authentication; averts illegal ONT accessto network
• ONT/HGU port control
• ONT/HGU VLAN mode
• Supports dynamic routing protocol: RIP and OSPF
• IPv4 static routing
• Routing interface provides per VLAN routing mode
• Supports VLAN
– IEEE 802.1Q tag-based VLAN
– Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
– GVRP for dynamic VLAN management
• Supports Link Aggregation
– 802.3ad Link Aggregation Control Protocol (LACP)
– Cisco ether-channel (static trunk)
• Supports Spanning Tree Protocol
– STP, IEEE 802.1D (Classic Spanning Tree Protocol)
– RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
– MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
• Port mirroring to monitor the incoming or outgoing trafficon a particular port (many to 1)
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)
• Loop protection to avoid broadcast loops
• Link Layer Discovery Protocol (LLDP)
• Ingress shaper and egress rate limit per port bandwidth control
• 8 priority queues on all switch ports
– IEEE 802.1p CoS/DSCP/Precedence
– VLAN ID
– Policy-based ingress and egress QoS
• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD snooping v1 and v2
• Querier mode support
• MVR (Multicast VLAN Registration)
• Authentication
– IEEE 802.1x port-based network access authentication
– Built-in RADIUS client to cooperate with the RADIUS servers
– RADIUS/TACACS+ users access authentication
• Access Control List
– IP-based Access Control List (ACL)
– MAC-based Access Control List (ACL)
– Time-based ACL
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid •MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
– Console and Telnet Command Line Interface
– HTTP web switch management
– SNMP v1 and v2c switch management
– SSHv2, SSLv3, TLSv1.0 and SNMP v3 secure access
• SNMP Management
– Four RMON groups (history, statistics, alarms, and events)
– SNMP trap for interface Link Up and Link Down notification
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
– Firmware upload/download via HTTP
– Reset button for system reboot or reset to factory default
– Dual images
• DHCP Functions:
– DHCP Relay
– DHCP Option 82
– DHCP Server
• User Privilege levels control
• Network Time Protocol (NTP) and SNTP
• Network Diagnostic
– SFP-DDM (Digital Diagnostic Monitor)
– ICMP remote IP ping
• Syslog remote alarm
• System Log
• Operating Temperature: 0..+50C
• Relative Humidity: 5..90% (non-condensing)
