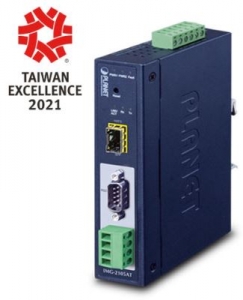

PLANET IMG-2105AT on teollisuuskäyttöön suunniteltu 1- porttinen RS-232/422/485 Modbus yhdyskäytävä yhdellä 100Base-FX SFP-moduulipaikalla.

IMG-2105AT mahdollistaa RTU-päätelaitteiden liittämisen Ethernet-lähiverkkoon. Laite on metallikoteloitu ja suunniteltu toimimaan laajennetulla käyttölämpötila- alueella.

Tekniset tiedot:
• 1x DB9 interface that supports RS232
• 1x 100Base-FX SFP Ethernet Port
• 1x terminal block interface that supports 2-wire RS485 and4-wire RS422/RS485 operation
• Asynchronous serial data rates up to 921600bps
• Fiber connector: LC single mode or multi-mode (may vary onSFP module)
• Transmission Mode: Full duplex
• Distance: 2km to 120km (may vary on SFP module)
• Cable: 50 or 62.5/125um multi-mode fiber cable 9/125um single-mode cable
• Built-in IP-based Web interface and telnet interface for remote management
• Software Protocol supports Modbus TCP, Modbus RTU, Modbus ASCII, IP, ARP, DHCP and DNS
• Supports RTU Master, RTU Slave, ASCII Master, and ASCII • Slave four serial operation modes via management interface
• Master mode supports 32 TCP slave connection requests
• Slave mode supports 32 TCP master connections
• PLANET Modbus Gateway utility for finding client device onthe network
• PLANET Smart Discovery utility automatically finds the client devices on the network
• Firmware upgrade/configuration backup and restore via HTTPprotocol
• IP30 metal case
• DIN-rail and wall-mount designs
• Dimensions: 32 x 87.8 x 135mm
• Weight: 390g
• Redundant power design:
– 9…48VDC / 24VAC, redundant power with reverse polarity protection Power Consumption, full Load:
– 9VDC: 0.44A (3.96W)
– 12VDC: 0.33A (4W)
– 24VDC: 0.17A (4.08W)
– 48VDC: 0.1A (4.8W)
• Supports 6000 VDC Ethernet ESD protection
• Free fall, shock-proof and vibration-proof for industries
• Supports extensive LED indicators for network diagnosis
• -40…75C operating temperature
• Reset button for resetting to factory default
• Compliance: FCC Part 15 Class A, CE Certification Class A, RoHS
