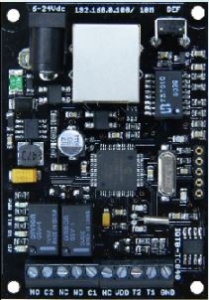

Smart power controlling board IQboard LAN is smart home power controller for DYI users andservice providers. Suitable for sites which require remote control power of electrical equipments with temperature or humidity log. Equipment’s power can be controlled from any reason such as freezing, time-based power control, overheating or other. Power can be controlled over WEB browser from PC, notebook, tablet or smartphone.

Ominaisuudet:
• Two controlled power outputs, on / off
• Two sensor inputs – thermo / hygrometers
• Thermostat and hygrostat feature
• Control by WEB browser or SNMP
• Scheduled control
• Sensor values difference control
• User rules control
• Control by equitermic curve
• Monitoring temperature and humidity by WEB browser
• Dataloger – history of temperature and humidity
• Collecting data from sensors over SNMP
• Built-in Passive PoE extractor
• Extra low power consumption 1W
• SNMP v 1.0
• XML support
• Optional DIN rail mounting
• Alerts by SNMP traps
• Security – web admin account
• Firmware upgradable Solutions IQboard was designed as power controlling plattform for DYI installations and small service providers. If you love playing with technical miracles or just need simple HW solution with robust software features for your service plattform, IQboard will serve you very long time for very affordable price.

Access from everywhere Smart IQboard can be simply controlled remotely from any WEB browser. Doesn’t matter if it’s PC, notebook, tablet or smarphone.

Monitoring All generated events and other alarms can be sent over SNMP traps. IQboard generate alerts for management station to notify user about events.

Control different ways Two power outputs can be controlled remotely by user, built-in scheduler, by static rules, by difference or by equitermic curve.

Expandable with sensors Power controller support many optional sensors to monitor environment and generate actions and alarms. Supported are external sensors like temperature and humidity.

Tekniset tiedot:
• Ulostuloreleet: 2x Relays, 30VDC @ 1A (resistiivinen tai induktiivinen)
• Liitännät:
– 1x Ethernet 10BaseT
– 2x IQbus
– 1-Wire DS18B20 lämpötila-anturille
• Ohjaus: Selain, SNMP v1.0
• Asetus: Selain
• Monitorointi:
– Selain
– SNMP
– XML
• Merkkivalot / LED:
– Power: Punainen
– Ethernet: Vihreä
– 01: Power output1, keltainen
– 02: Power output2, keltainen
• Turvallisuus:
– Selain: salasana
– SNMP: community strings
• Käyttöjännite: 12VDC tai passiivi PoE 6…36VDC
• Virrankulutus: 1W
• Mitat: 72 x 50mm
• Paino: 35g
• Käyttölämpötila-alue: -20…+70C
