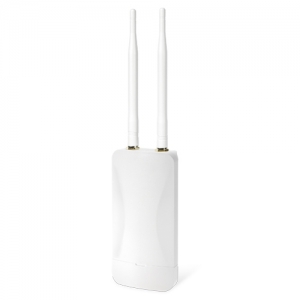

PLANET WDAP-3600BE on ulkokäyttöön suunniteltu WiFi 7 (802.11be) langaton tukiasema, joka tarjoaa jopa 3600 Mbit/slangattoman nopeuden (2.4GHz: 688 Mbit/s, 5GHz: 2882 Mbit/s). Tukiasemassa on 1x 100/1000/2500Base-T RJ45 WAN/PoE-portti sekä 1x 10/100/1000Base-T RJ45 LAN-portti. Laite tukee virransyöttöä 802.3af/at PoE:n tai 12V DC-syötönkautta.

WDAP-3600BE toimii samanaikaisesti 2.4GHz- ja 5GHz- taajuuksilla ja tukee WiFi 7 -tekniikan lisäksi 802.11ax/ac/n/a/b/g -standardeja. MU-MIMO-, OFDMA- ja Beamforming-tekniikat parantavat kapasiteettia ja vähentävätviiveitä. Laite tukee jopa 8 SSID:tä ja 256 asiakaslaitetta.

IP65-suojattu kotelo, sisäänrakennettu ylijännitesuoja ja laaja -30…+70C käyttölämpötila-alue takaavat luotettavan toiminnan vaativissa ulko-olosuhteissa.

Tuotepakkaus sisältää tukiaseman, kaksi RP-SMA-antennia, Ethernet-kaapelin, kaksi kaapelikiinnikettä, CloudNMS App Sheetin sekä englanninkielisen pikaoppaan.

Tekniset tiedot:
• 1x 100/1000/2500BASE-T PoE+ WAN port (802.3at PoE+ PD)
• 1x 10/100/1000BASE-T LAN port
• Compliant with IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) dual-band wireless technology
• Dual-band concurrent operation with a maximum wireless throughput of 3600Mbps (2.4GHz: 688Mbps, 5GHz: 2882Mbps)
• Built-in support for advanced Wi-Fi 7 features: 4096-QAM, OFDMA, MU-MIMO, Beamforming, BSS Coloring, Seamless Roaming (802.11k/v/r)
• Dual-band high-gain external antennas for extended outdoorcoverage
• IP-rated weatherproof housing with wide temperature support (-30…70C)
• Flexible operation modes: Gateway, AP, Repeater, WISP
• Supports up to 8 SSIDs (4 per band) with VLAN-to-SSID mapping
• Wi-Fi Multimedia (WMM) for optimized audio/video streaming
• Real-time Wi-Fi channel analysis chart for interference management
• Wireless Mode:
– Access Point
– Gateway
– Repeater
– WISP
• Seamless roaming with 802.11k/v/r to ensure uninterrupted client mobility
• Comprehensive wireless security with WPA3 Personal, WPA2/WPA3 Personal, WPA2 Enterprise, WPA/WPA2 Enterprise
• VLAN support with SSID-to-VLAN mapping, plus IP/MAC filtering and client isolation
• Enhanced security with ACL management to prevent unauthorized access
• Powered by 802.3af/at PoE+, simplifying installation by combining power and data through a single Ethernet cable
• Fully compatible with PLANET CloudNMS app, and AP Controllers, enabling centralized monitoring and management
• Self-healing mechanism through system auto-reboot scheduling
• User-friendly Web GUI and setup wizard for quick configuration and monitoring
• Power Consumption:
– Max. 5.5W / 18.76 BTU (Power on without any connection)
– Max. 9.5W / 32.4 BTU (Full load)
• Band Mode: 2.4GHz / 5GHz concurrent mode
• Frequency Range
– 2.4GHz: 2.412…2.472 GHz
– 5GHz: 5.180…5.700 GHz
• Operating Channels:
– 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels)
– 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 (19 channels)
• IP Level IP65
• Dimensions: 86 x 30 x 186mm (without antennas)
• Weight: 550g
• Compliance: CE, RoHS
