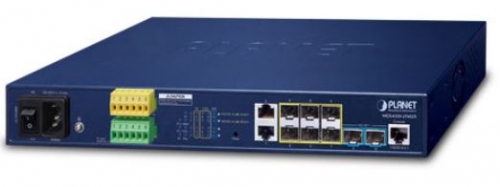

PLANET MGS-6320-2T6S2X on 10-porttinen SNMP-hallittava Layer3-tason kytkin, jossa on 2x 10/100/1000Base-T kupariporttia, 2x 100/1000Base-X SFP-moduulipaikkaa, 4x 100/1000/2500Base-XSFP moduulipaikkaa sekä 2x 1000/2500/10GBase-X SFP+ moduulipaikkaa valokuitumoduleille.

Tekniset tiedot:
• 2x 100/1000BASE-T RJ45 copper (Port 1 to port 2)
• 2x 100/1000X SFP (Port 3 to port 4)
• 4x 100/1000/2500BASE-X SFP (Port 5 to port 8)
• 2x 1G/2.5G/10G SFP+ (Port 9 to port 10)
• One RJ45 console interface for basic management and setup
• Redundant Power System
– Redundant Power System: 100…240VAC / Dual 24…57VDC
– Active-active redundant power failure protection
– Backup of catastrophic power failure on one supply
– Fault tolerance and resilience
• 2x Digital Input (DI)
• 2x Digital Output (DO)
• Integrates sensors into auto alarm system
• Transfer alarm to IP network via SNMP trap
• -10…+60C operating temperature for DC power input only
• 13″ desktop size, 19-inch rack-mountable
• Relay alarm for port breakdown, power failure
• Layer 3 IP Routing Features
• IPv4 dynamic routing protocol supports RIPv2 and OSPFv2 and IPv6 OSPFv3
• IPv6 dynamic routing protocol supports OSPFv3
• IPv4/IPv6 hardware static routing
• Routing interface provides per VLAN routing mode
• Storm Control support
• Broadcast / Multicast / Unicast
• Supports VLAN
• IEEE 802.1Q tagged VLAN
• Up to 4K VLANs groups, out of 4094 VLAN IDs
• Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
• Private VLAN Edge (PVE)
• Port Isolation
• MAC-based VLAN
• IP Subnet-based VLAN
• Protocol-based VLAN
• VLAN Translation
• Voice VLAN
• GVRP
• Supports Spanning Tree Protocol
• STP, IEEE 802.1D Spanning Tree Protocol
• RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
• MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
• BPDU Filtering/BPDU Guard
• Supports Link Aggregation
• 802.3ad Link Aggregation Control Protocol (LACP)
• Cisco ether-channel (Static Trunk)
• Maximum 5 trunk groups, up to 10 ports per trunk group
• Provides port mirror (many-to-1)
• Port mirroring to monitor the incoming or outgoing trafficon a particular port
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode
• Quality of Service
• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8x priority queues on all switch ports
• Traffic classification
• IEEE 802.1p CoS
• IP TOS/DSCP/IP Precedence
• IP TCP/UDP port number
• Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and In/Out bandwidth control on each port
• Traffic-policing policies on the switch port
• DSCP remarking
• Multicast
• Supports IPv4 IGMP Snooping v1, v2 and v3
• Supports IPv6 MLD Snooping v1 and v2
• Querier mode support
• IPv4 IGMP Snooping port filtering
• IPv6 MLD Snooping port filtering
• Multicast VLAN Registration (MVR) support
• Authentication
• IEEE 802.1x Port-based/MAC-based network access authentication
• Built-in RADIUS client to co-operate with the RADIUS servers
• TACACS+ login users access authentication
• RADIUS/TACACS+ users access authentication
• Access Control List
• IP-based Access Control List (ACL)
• MAC-based Access Control List
• Source MAC/IP address binding
• DHCP Snooping to filter un-trusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid
• MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IP address access management to prevent unauthorized intruder
• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
• Web switch management
• Console/Telnet Command Line Interface
• SNMP v1 and v2c switch management
• SSHv2, TLSv1.2 and SNMP v3 secure access
• SNMP Management
• Four RMON groups (history, statistics, alarms and events)
• SNMP trap for interface Linkup and Linkdown notification
• IPv6 IP Address/NTP/DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
• Firmware upload/download via HTTP
• Configuration upload/download via HTTP
• Reset button for system reboot or reset to factory default
• Dual Images
• DHCP Functions
• DHCP Relay
• DHCP Option82
• DHCP Server
• User Privilege levels control
• NTP (Network Time Protocol)
• UPnP
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• Network Diagnostic
• SFP-DDM (Digital Diagnostic Monitor)
• ICMPv6/ICMPv4 Remote Ping
• Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
• SMTP/Syslog remote alarm
• System Log
• PLANET Smart Discovery Utility for deployment management
• PLANET NMS system and CloudViewer for deployment management
