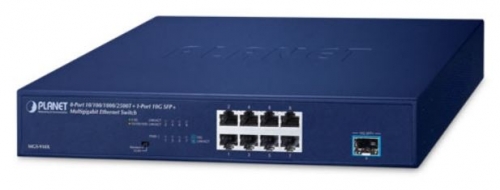

PLANET MGS-910X on 9-porttinen 10/100/1000BaseT Gigabit Ethernet kytkin 10GBit/s uplink SFP+ portilla.

Tekniset tiedot:
• 8x 10/100/1000/2500BASE-T RJ45 ports with auto MDI/MDI-X function
• One 10GBASE-X SFP+ port
• Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T and IEEE 802.3bz 2500 BASE-T
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• Integrated address look-up engine, supporting 4K absolute MAC addresses
• 12K jumbo packet support
• Hardware-based DIP switch for Standard or VLAN mode selection:
– VLAN mode: Ports 1-8 cannot communicate with each other, but can communicate with uplink port 9
• Power saving ability for Green networking
• IEEE 802.1Q VLAN packet transparency support
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• Automatic address learning and address aging
• 0…50C operating temperature
• 100…240VAC, 1A, 50-60Hz universal power input
• 12″ desktop size, 19-inch rack mountable for user-friendlyinstallation
• Silent fanless design
• Supports contact discharge of 6kV DC and air distance discharge of 8KV DC for Ethernet ESD protection
• Supports 6KV surge immunity
