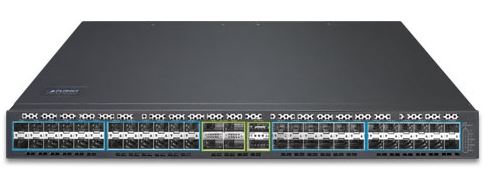

PLANET XGS-6350-48X2Q4C on 54-porttinen hallittava Layer 3
-tason kuitukytkin, jossa on 48x SFP+/SFP-moduulipaikkaa 10GBase-SR/LR- tai 1000Base-SX/LX/BX -moduuleille, 2x 40/10GQSFP+ -moduulipaikkaa sekä 4x 100/40G QSFP28-moduulipaikkaa uplink-yhteyksille.

Redundantti virtalähde, kompakti 1U-räkkikotelo, 1, 92 Tbit/skytkentäkangas ja wire-speed-läpivienti tekevät siitä suorituskykyisen ratkaisun vaativiin runkoverkkoihin ja datakeskuksiin.

XGS-6350-48X2Q4C tukee laajasti Layer 3 -protokollia, kuten RIP, RIPng, OSPFv2, OSPFv3, BGP ja BGP4+, mahdollistaen monipuolisen reitityksen sekä IPv4- että IPv6-ympäristöissä.Multicast-ominaisuuksiin kuuluvat IPv4 IGMPv1/v2/v3 snooping, IPv6 MLD snooping, Multicast VLAN Registration (MVR) sekä PIM-DM, PIM-SM ja PIM-SSM.

Turvaominaisuuksiin sisältyvät ACL, 802.1X, DHCP Snooping, IP Source Guard sekä IPv6-pohjaiset hallinta- ja suojaustoiminnot. Redundanssia varten laitteessa on hallintamoduulin, virtajärjestelmän ja tuulettimien varmistettu rakenne, mikä takaa korkean luotettavuuden.

Tuotepakkaus sisältää kytkimen ja yhden 100-240VAC virtalähteen lisäksi virtajohdon, räkkikiinnikkeet, konsolikaapelin sekä englanninkielisen pikaoppaan.

Tekniset tiedot:
• 48x 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE- SX/LX/BX SFP
• 2x QSFP+ slots with each supporting 40G and 4 x 10 GigabitEthernet modes
• 4x QSFP28 slots with each supporting native 100 Gigabit Ethernet, 40G and 4 x 10 Gigabit Ethernet modes
• RJ45 to DB9 console interface for switch basic management and setup
• MNG port for HTTP server access
• USB port
• Static Routing, RIP v1/v2, OSPF and BGP
• Policy Routing
• BFD for OSFP and BGP
• IPv6 Features
• ICMPv6, DHCPv6, ACLv6, IPv6 Telnet
• IPv6 Neighbor Discovery
• Path MTU Discovery
• MLD and MLD Snooping
• IPv6 Static Routing, RIPng, OSPFv3 and BGP4+
• Manual Tunnel, ISATAP Tunnel and 6-to-4 Tunnel
• Supports Multicast Routing Protocols:
– PIM-DM (Protocol Independent Multicast – Dense Mode)
– PIM-SM (Protocol Independent Multicast – Sparse Mode)
– PIM-SSM (Protocol Independent Multicast – Source-Specific Multicast Mode)
• Supports IGMP v1/v2/v3
• Supports VLAN
– IEEE 802.1Q tag-based VLAN
– Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
– GVRP for dynamic VLAN management
– Private VLAN
• Supports Link Aggregation
– 802.3ad Link Aggregation Control Protocol (LACP)
– Cisco ether-channel (static trunk)
• Supports Spanning Tree Protocol
– STP, IEEE 802.1D (Classic Spanning Tree Protocol)
– RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
– MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
• Port mirroring to monitor the incoming or outgoing trafficon a particular port (many to 1)
• Loop protection to avoid broadcast loops
• Link Layer Discovery Protocol (LLDP)
• Ethernet OAM 802.3ah/802.1ag/ITU-Y.1731
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)
• Quality of Service
• Ingress shaper and egress rate limit per port bandwidth control
• 8x priority queues on all switch ports
• IEEE 802.1p CoS/DSCP/Precedence
• VLAN ID
• Policy-based ingress and egress QoS
• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD snooping v1 and v2
• Querier mode support
• MVR (Multicast VLAN Registration)
• Authentication
• IEEE 802.1x port-based network access authentication
• Built-in RADIUS client to cooperate with the RADIUS servers
• RADIUS/TACACS+ users access authentication
• Access Control List
• IP-based Access Control List (ACL)
• MAC-based Access Control List (ACL)
• Time-based ACL
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid
• MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• Management
• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
• Console and Telnet Command Line Interface
• HTTP web switch management
• SNMP v1 and v2c switch management
• SSHv2, SSLv3, TLSv1.0 and SNMP v3 secure access
• SNMP Management
• Four RMON groups (history, statistics, alarms, and events)
• SNMP trap for interface Link Up and Link Down notification
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
• Firmware upload/download via HTTP
• Reset button for system reboot or reset to factory default
• Dual images
• DHCP Functions:
– DHCP Relay
– DHCP Option 82
– DHCP Server
• User Privilege levels control
• Network Time Protocol (NTP), SPAN, RSPAN
• Network Diagnostic
• SFP-DDM (Digital Diagnostic Monitor)
• ICMP remote IP ping
• Syslog remote alarm
• System Log
• Virtualized multiple XGS-6350-48X2Q4C switches integrated into one logical device
• Single IP address stack management, supporting up to 2 hardware units stacked together
• Stacking architecture supports redundant Ring mode
• Power Consumption: 147W / 504.3BTU (maximum)
• Power Requirements:
– 100…240AC, 50/60Hz
– 36…72VDC (optional)
• Fan: 4 pcs
• Operating Temperature: 0…+50C
• Dimensions: 442.5 x 403.5 x 44mm, 1U height
• Weight: 8.8kg
• Compliance: FCC Part 15 Class A, CE
