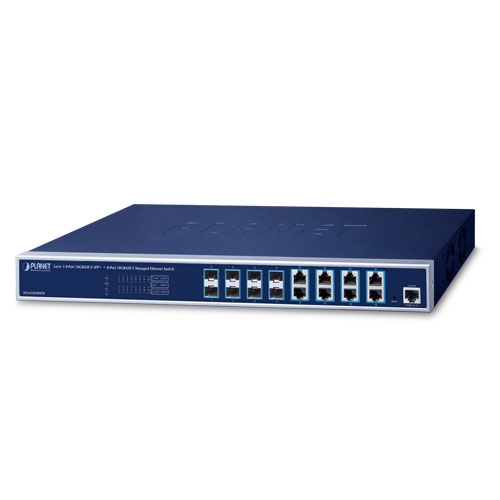

LANET XGS-6320-8X8TR on 16-porttinen L3-tason 10G Ethernet-kytkin, jossa on 8x 10GBASE-X SFP+ -moduulipaikkaa ja 8x 10GBASE-T Ethernet-kupariporttia.

Kuituportit tukevat 10GBASE-SR/LR- sekä 1G/2.5G-SFP-moduuleita, ja kupariportit toimivat 100M/1G/2.5G/5G/10G-nopeuksilla.

Kytkin sisältää 320Gbit/s non-blocking kytkinarkkitehtuurin ja tarjoaa L3-reititysominaisuudet, kuten staattisen reitityksen, RIP v2:n ja OSPF-reitityksen.

L2-toiminnot kattavat 802.1Q-VLANit, Q-in-Q-tunneloinnin, Private VLAN Edgen, MAC- ja protokollapohjaiset VLANit, MSTP/RSTP/STP-silmukansuojauksen, LACP-linkkien yhdistämisensekä IGMP/MLD-ryhmävalvonnan. Turvaominaisuuksiin kuuluvat 802.1X-autentikointi, RADIUS/TACACS+, ACL-suodatus sekä DHCPSnooping, Dynamic ARP Inspection ja IP Source Guard.

Hallinta onnistuu web-käyttöliittymän, SSH:n, TLS:n, SNMPv3:n, Telnetin ja konsolin kautta. SFP-moduuleille on tarjolla DDM-diagnostiikka, ja kytkin tukee UNI-NMS- ja CloudViewer-etähallintaa.

XGS-6320-8X8TR sisältää 100-240 VAC -verkkovirtalähteen ja 36-60 VDC -redundanttivirransyötön, kaksi älytuuletinta ja 0…+50°C käyttölämpötila-alueen, mikä tekee siitä luotettavan runko- ja jakelutason kytkimen vaativiin yritys-ja teollisuusverkkoihin. Pakkaus sisältää kytkimen lisäksi DB9-RJ45-konsolikaapelin, räkkikiinikkeet, virtajohdon, sekä englanninkielisen pikaoppaan.

Tekniset tiedot:
• 8x 10GBASE-T RJ45 ports, backward compatible with 100/1G/2.5G/5GBASE-T auto-negotiation
• 8x 10GBASE-X SFP+ ports, backward compatible with 100BASE-FX, 1000BASE-X and 2500BASE-X SFP transceivers
• RJ45 type RS232 console interface for switch basic management
• Redundant 100-240VAC and 36-60VDC dual power
• Active-active redundant power failure protection
• Backup of catastrophic power failure on one supply
• Fault tolerance and resilience
• IPv4 dynamic routing protocol supports RIPv2 and OSPFv2 and IPv6 OSPFv3
• IPv6 dynamic routing protocol supports OSPFv3
• IPv4/IPv6 hardware static routing
• Routing interface provides per VLAN routing mode
• Storm Control support:
– Broadcast/Multicast/Unknown unicast
• Supports VLAN:
– IEEE 802.1Q tagged VLAN
– Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
– Private VLAN Edge (PVE)
– Protocol-based VLAN
– MAC-based VLAN
– Voice VLAN
– GVRP (GARP VLAN Registration Protocol)
• Supports Spanning Tree Protocol:
– IEEE 802.1D Spanning Tree Protocol
– IEEE 802.1w Rapid Spanning Tree Protocol
– IEEE 802.1s Multiple Spanning Tree Protocol, spanning treeby VLAN
– BPDU Guard
• Supports Link Aggregation:
– 802.3ad Link Aggregation Control Protocol (LACP)
– Cisco ether-channel (static trunk) -Maximum 8 trunk groups, up to 16 ports per trunk group
• Provides port mirror (many-to-1)
• Port mirroring to monitor the incoming or outgoing trafficon a particular port
• Loop protection to avoid broadcast loops
• Link Layer Discovery Protocol (LLDP)
• Compatible with Cisco uni-directional link detection(UDLD)that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)
• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8 priority queues on all switch ports
• Traffic classification:
– IEEE 802.1p CoS
– TOS/DSCP/IP Precedence of IPv4/IPv6 packets
– IP TCP/UDP port number
– Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and In/Out bandwidth control on each port
• Traffic-policing on the switch port
• DSCP remarking
• Supports IPv4 IGMP Snooping v1, v2 and v3
• Supports IPv6 MLD Snooping v1 and v2
• Querier mode support
• IPv4 IGMP Snooping port filtering IPv6 MLD Snooping port filtering
• Multicast VLAN Registration (MVR) support
• Authentication:
– IEEE 802.1x Port-based/MAC-based network access authentication
– Built-in RADIUS client to co-operate with the RADIUS servers
– TACACS+ login users access authentication
– RADIUS/TACACS+ users access authentication
– Guest VLAN assigns clients to a restricted VLAN with limited services
• Access Control List:
– IP-based Access Control List (ACL)
– MAC-based Access Control List
• Source MAC/IP address binding
• DHCP Snooping to filter un-trusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IP address access management to prevent unauthorized intruder
• IPv4 and IPv6 dual stack management
• Switch Management Interfaces:
– Web switch management
– Console and Telnet Command Line Interface
– SNMP v1 and v2c switch management
– SSHv2, TLSv1.2 and SNMPv3 secure access
• SNMP Management:
– Four RMON groups (history, statistics, alarms and events)
– SNMP trap for interface Linkup and Linkdown notification
• IPv6 IP Address/NTP/DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance:
– Firmware upload/download via HTTP/TFTP
– Reset button for system reboot or reset to factory default
– Dual Images
• DHCP Functions:
– DHCP Relay
– DHCP Option82
– DHCP Server
• User Privilege levels control
• NTP (Network Time Protocol)
• Network Diagnostic
– ICMPv6/ICMPv4 Remote Ping
– SFP-DDM (Digital Diagnostic Monitor)
• SMTP, Syslog and SNMP trap remote alarm
• System Log
