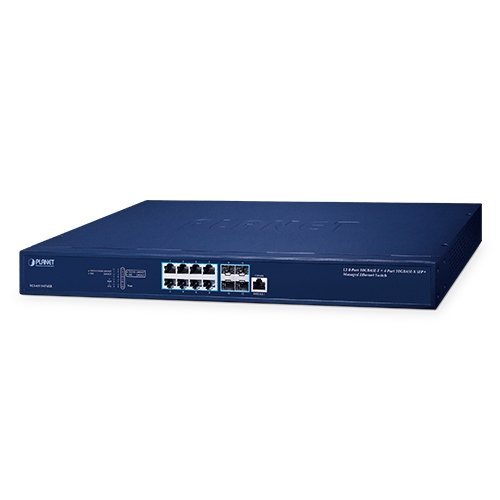

PLANET XGS-6311-8T4XR on 12-porttinen L3-tason 10Gbit/s Ethernet -kytkin, jossa on 8x 100/1G/2.5G/5G/10GBase-T kupariporttia sekä 4x 10GBase-X SFP+ -moduulipaikkaa.

XGS-6311-8T4XR tarjoaa täyden 10Gbit/s kapasiteetin kaikissaporteissa ja soveltuu erityisesti Wi-Fi 6/6E/7 – tukiasemille, NAS-järjestelmille, palvelimille ja työasemille.

Kytkin sisältää 240Gbit/s kytkinarkkitehtuurin, L3-reitityksen (staattinen reititys, RIP, OSPF) sekä IPv6-tuetun hallinnan. VLAN-toiminnot kattavat 802.1Q-tunnisteet, Q-in-Q-pinonnan, yksityiset VLAN-alueet ja GVRP-hallinnan. Kytkin tukee myös linkkien yhdistämistä (LACP), silmukansuojausta (RSTP/MSTP) sekä IGMP- ja MLD-ryhmävalvontaa.

Turvaominaisuuksiin kuuluvat 802.1X-porttivalvonta, RADIUS/TACACS+-tunnistus, ACL-säännöt, DHCP-valvonta, IP-lähdesuojaus ja ARP-tarkastus. Hallinta onnistuu web-käyttöliittymän, SSH:n, SNMPv3:n ja konsolin kautta. SFP-moduuleille on tarjolla optinen diagnostiikka (DDM), ja kytkin tukee myös PLANET UNI-NMS-etähallintaa.

Laite sisältää kaksi 100-240VAC -redundanttivirransyöttöä, 1U-rakennekoon, 2 tuuletinta ja 0..+50C käyttölämpötilan, mikä tekee siitä luotettavan ytimen tai jakelutason kytkimenvaativiin yritys- ja teollisuusverkkoihin.

Pakkaus sisältää kytkimen lisäksi DB9-RJ45 – konsolikaapelin, kaksi virtakaapelia, räkkikiinnikeet ja englanninkielisen pikaoppaan.

Tekniset tiedot:
• 8x 100/1G/2.5G/5G/10GBASE-T RJ45 auto-negotiation copper ports (Ports 1 to 8)
• 4x 10GBASE-X SFP+ slots, compatible with 1G/2.5GBASE- SX/LX/BX SFP (Ports 9 to 12)
• 1x RJ45 type RS232 console interface for switch basic management and setup
• IPv4 routing protocol supports RIPv1/v2 and OSPFv2
• IPv6 routing protocol supports RIPng and OSPFv3
• Routing interface provides per VLAN routing mode
• Supports route redistribution
• Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard
• Prevents packet loss flow control:
– IEEE 802.3x pause frame flow control in full-duplex mode
– Back pressure flow control in half-duplex mode
• High performance Store-and-Forward architecture, broadcaststorm control, port loopback detection
• 32k MAC address table, automatic source address learning and aging
• Supports VLAN:
– IEEE 802.1Q tag-based VLAN
– GVRP for dynamic VLAN management
– Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
– Private VLAN Edge (PVE) supported
– GVRP protocol for Management VLAN
– Protocol-based VLAN
– MAC-based VLAN
– IP subnet VLAN
• Supports Link Aggregation:
– Maximum 64 trunk groups, up to 8 ports per trunk group
– IEEE 802.3ad LACP (Link Aggregation Control Protocol)
– Cisco ether-channel (static trunk)
• Supports Spanning Tree Protocol:
– STP, IEEE 802.1D (Classic Spanning Tree Protocol)
– RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
– MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
– Supports BPDU & root guard
• Port mirroring to monitor the incoming or outgoing trafficon a particular port (many to many)
• Provides port mirror (many-to-1)
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)
• 8 priority queues on all switch ports
• Support for strict priority and WRR (Weighted Round Robin)CoS policies
• Traffic classification:
– IEEE 802.1p CoS/ToS
– IPv4/IPv6 DSCP
– Port-based WRR
• Strict priority and WRR CoS policies
• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD v1 and v2 snooping
• Querier mode support
• Supports Multicast VLAN Register (MVR)
• IEEE 802.1x port-based network access authentication
• MAC-based network access authentication
• Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
• TACACS+ login users access authentication
• IP-based Access Control List (ACL)
• MAC-based Access Control List
• Supports DHCP snooping
• Supports ARP inspection
• IP Source Guard prevents IP spoofing attacks
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• Management IP for IPv4 and IPv6
• Switch Management Interface:
– Console/Telnet Command Line Interface
– Web switch management
– SNMP v1, v2c, and v3 switch management
– SSH/SSL/TLS secure access
• BOOTP and DHCP for IP address assignment
• Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
• SNTP (Simple Network Time Protocol) for IPv4 and IPv6
• User privilege levels control
• Syslog server for IPv4 and IPv6
• Supports DDM
• Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
• Supports sFlow
• Supports ULDP
• Supports ULPP (Uplink Protection Protocol)
• Supports ULSM (Uplink State Monitor protocol)
• Supports LLDP/LLDP MED
• Supports DHCP Option82/43/60/61/67
• Supports ping, trace route function for IPv4 and IPv6
• PLANET Smart Discovery Utility for deployment management
• PLANET NMS for deployment management
• PLANET NMSViewerPro for deployment management
• Power Consumption:
– Max. 22.3W / 76BTU (Power on without any connection)
– Max. 56W / 190.96BTU (Full load)
• Power Requirements: Dual 100-240VAC, 50/60Hz
• Fan: 2
• Dimensions: 441.5 x 207.5 x 44mm, 1U height
• Weight: 2831g
• Operating Temperature: 0…+50C
• Compliance: FCC Part 15 Class A, CE
