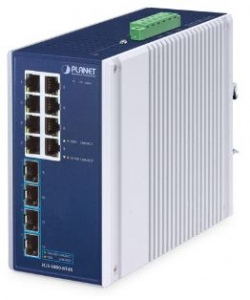

PLANET IGS-1000-8T8X on teollisuustason, DIN-kiskotyyppine hallitsematon UltraPoE++ kytkin 10G uplink porteilla. IGS- 1000-8T4X kytkimessä on kahdeksan 10/100/1000/2500BASE-T- kupariporttia ja neljä 1G/2.5G/10GBASE-X SFP+ uplink-porttiakuitumoduuleille.

Tekniset tiedot:
• 8x 10/100/1000/2500 BASE-T RJ45 copper ports
• 4x 10GBASE-X SFP+ slots, compatible with 100/1000/2500BASE-X SFP
• IP30 aluminum case
• DIN-rail and wall-mount designs
• Fault alarm for power input failed
• Supports ESD 4kV contact and 8kV air DC Ethernet protection
• Supports surge protection up to 5kV
• -40…+75C operating temperature
• 48…54VDC redundant power with reverse polarity protection
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 4k MAC address table size
• 12k jumbo frame
• IEEE 802.1Q VLAN transparency
• Automatic address learning and address aging
• Supports CSMA/CD protocol
• Dimensions: 76x135x152mm
• Weight: 1211g
• Compliance: FCC Part 15 Class A, CE
