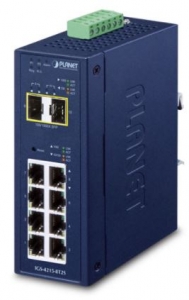

PLANET IGS-4215-8T2S on teollisuuskäyttöön suunniteltu hallittava Ethernet-kytkin laajennetulla käyttölämpötila- alueella. Kytkin on varustettu 8x 10/100/1000Base-T kupariportilla sekä 2x 100/1000M SFP-porteilla.

Tekniset tiedot:
• 8x 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function
• 2x 100/1000BASE-X SFP transceiver type auto detection
• Dual power input, redundant power with reverse polarity protection
• 9…48VDC input or AC 24V input
• Active-active redundant power failure protection
• Backup of catastrophic power failure on one supply
• Fault tolerance and resilience
• IP30 metal case
• DIN-rail and wall-mount designs
• Supports ESD 6kVDC Ethernet protection
• Supports -40…+75C operating temperature
• Free fall, shock-proof and vibration-proof for industries
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 8k MAC address table size
• 9k jumbo frame
• Automatic address learning and address aging
• Supports CSMA/CD protocol
• Supports VLAN
• IEEE 802.1Q tagged VLAN
• Up to 256 VLAN groups, out of 4096 VLAN IDs
• Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
• Private VLAN (Protected port)
• Protocol-based VLAN
• MAC-based VLAN
• Voice VLAN
• GVRP (GARP VLAN Registration Protocol)
• Supports Spanning Tree Protocol
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
• BPDU Guard
• Supports Link Aggregation
• IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• Cisco ether-channel (static trunk)
• Up to 3 trunk groups
• Up to 6 ports per trunk group with 12Gbps bandwidth
• Provides port mirror (many-to-1)
• IPv6 MAC/VLAN/Multicast Address Table
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Link Layer Discovery Protocol (LLDP)
• Ingress/Egress Rate Limit per port bandwidth control
• Support 8 priority queues on all switch ports
• Traffic classification
• IEEE 802.1p CoS
• IP TOS/DSCP/IP precedence of IPv4/IPv6 packets
• IP TCP/UDP port number
• Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and In/Out bandwidth control on each port
• Traffic-policing on the switch port
• DSCP remarking
• Supports IPv4 IGMP snooping v1, v2, v3
• Supports IPv6 MLD snooping v1, v2
• Querier mode support
• IGMP snooping port filtering
• MLD snooping port filtering
• Storm Control support
• Broadcast/Multicast/Unicast
• Authentication
• IEEE 802.1X port-based network access authentication
• Built-in RADIUS client to cooperate with the RADIUS servers
• DHCP Relay and DHCP Option 82
• RADIUS/TACACS+ users access authentication
• Access Control List
• IPv4/IPv6 IP-based ACL
• IPv4/IPv6 IP-based ACE
• MAC-based ACL
• MAC-based ACE
• MAC Security
• Static MAC
• MAC filtering
• Port security for source MAC address entries filtering
• DHCP snooping to filter distrusted DHCP messages
• Dynamic ARP inspection discards ARP packets with invalid
• MAC address to IP address binding
• IP source guard prevents IP spoofing attacks
• IP address access management to prevent unauthorized intruder
• Management
• IPv4 and IPv6 dual stack management
• Switch Management Interface
• IPv4/IPv6 Web switch management
• Console and telnet Command Line Interface
• SNMP v1, v2c, v3
• SSH, TLS secure access
• IPv6 IP address/NTP/DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• Static and DHCP for IP address assignment
• System Maintenance
• Firmware upload/download via HTTP/TFTP
• Hardware reset button for system reboot or reset to factory default
• Dual images
• User Privilege levels control
• Network Time Protocol (NTP)
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• Syslog remote alarm
• SNMP Management
• SNMP trap for interface link up and link down notification
• Four RMON groups (history, statistics, alarms and events)
• PLANET Smart Discovery Utility for deployment management
• PLANET UNI-NMS (Universal Network Management) and Smart
• Discovery Utility for deployment management
• Network diagnostic
• SFP-DDM (Digital Diagnostic Monitor)
• Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
• ICMPv6 / ICMPv4 remote pin
• Dimensions: 50×87.8x135mm
• Weight: 510g
• Compliance: FCC Part 15 Class A, CE
