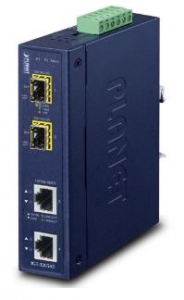

PLANET IGT-2205AT on teollisuuskäyttöön suunniteltu mediamuunnin kahdella 10/100/1000Base-T portilla sekä kahdella SFP-moduulipaikalla (100/1000/2500).

Tekniset tiedot:
• 2x 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
• 2x SFP, supporting 100/1000/2500BASE-X transceiver type auto detection
• Fiber Port Redundancy
• Automatically detects link status and redundancy on dual ports with the same connector type.
• Only primary port is active at a time, while the backup port is blocked.
• When primary port link failure occurs, the traffic will swap to back up port automatically.
• Once the primary port status is back to link up, the traffic will swap from backup port to primary port. • Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
• High-performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 9k jumbo frame size support
• Integrated address look-up engine, supporting 4k absolute MAC addresses
• Automatic address learning and address aging
• Industrial Case and Installation
• Slim IP30 metal case protection
• DIN-rail, wall-mount or side wall-mount design for redundant power design
• Redundant Power Design
• 12…48VDC, redundant power with reverse polarity protection function
• 24VAC power adapter acceptable
• Supports 6000VDC Ethernet ESD protection
• -40…+75C operating temperature
