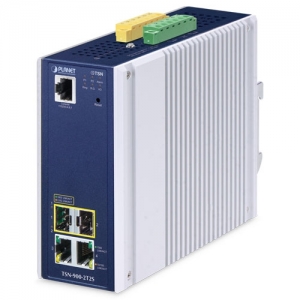

PLANET TSN-900-2T2S on teollisuuskäyttöön suunniteltu hallittava TSN (Time-Sensitive Networking) ethernet- mediamuunnin, jossa on 2x 10/100/1000Base-T kupariporttia ja2x 1000/2500Base-X SFP-porttia.

Kestävä IP30-suojattu metallikotelo, DIN-kisko- ja seinäkiinnitysmahdollisuus sekä laajennettu käyttölämpötila-alue (-40…+75C) tekevät siitä luotettavan ratkaisun vaativiin teollisuusympäristöihin.

TSN-900-2T2S tukee IEEE 1588v2 PTP-aikasynkronointia kaikissaporteissa sekä keskeisiä TSN-standardeja, kuten IEEE 802.1AS-Rev, 802.1Qbv, 802.1Qbu, 802.3br, 802.1Qci ja 802.1CB, mahdollistaen erittäin pienen viiveen ja luotettavan reaaliaikaisen tiedonsiirron. Tämä tekee siitä ihanteellisen ratkaisun erinomaisen valinnan Industry 4.0 – sovelluksiin, 4K/8K-videostriimaukseen ja VR/AR- ympäristöihin.

Laite tukee ERPS-rengassuojausta, MSTP:tä, VLAN-ominaisuuksia, LACP-linkkiaggregaatiota sekä suojaustoimintoja, kuten ACL, 802.1X, DHCP Snooping ja IP Source Guard. Lisäksi siinä on 2 digitaalituloa ja 2 digitaalilähtöä hälytysten integrointiin sekä 5000VDC Ethernet ESD-suojaus.

Tuotepakkaus sisältää laitteen lisäksi, seinäkiinnikkeet, RJ45-DB9 RS232-konsolikaapelin ja pikaoppaan.

Tekniset tiedot:
• 2x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
• 2x 1000/2500BASE-X SFP slots for SFP type auto detection
• 1x RJ45 console interface for basic management and setup
• Dual power input, redundant power with reverse polarity protection:
– 9…48VDC input or 24VAC input
– Active-active redundant power failure protection
– Backup of catastrophic power failure on one supply
– Fault tolerance and resilience
• IP30 metal case
• DIN-rail and wall-mount designs
• Supports 5000V DC Ethernet ESD protection
• -40…75C operating temperature
• 2 digital input (DI)
• 2 digital output (DO)
• Integrates sensors into auto alarm system
• Transfers alarm to IP network via email and SNMP trap
• High Precision Time Synchronization:
– IEEE1588 (Time Stamping)
– 802.1AS-Rev gPTP default profile
• Shapers:
– 802.1Qbv Enhancements for Scheduled Traffic
– 802.1Qch (Cyclic Queuing and Forwarding)
• TSN Stream Policing:
– 802.1Qci (Per Stream Filtering and Policing)
• Redundancy:
– 802.1CB FRER for seamless redundancy
– Also standard Linear and Ring protection
• Delay Reduction:
– IEEE 802.1Qbu Frame Preemption,
– IEEE 802.3br Interspersing Express Traffic (IET)
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Storm Control support:
– Broadcast/Multicast/Unicast
• Supports VLAN:
– IEEE 802.1Q tagged VLAN
– Supports provider Bridging (VLAN Q-in-Q, IEEE 802.1ad)
– Private VLAN Edge (PVE)
– Port Isolation
– MAC-based VLAN
– Protocol-based VLAN
– Voice VLAN
– VLAN Translation
– GVRP
• Supports Spanning Tree Protocol:
– IEEE 802.1D Spanning Tree Protocol (STP)
– IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
– IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
– BPDU Guard
• Supports Link Aggregation
– 802.3ad Link Aggregation Control Protocol (LACP)
– Cisco ether-channel (static trunk)
– Maximum 3 trunk groups with 6 ports per trunk group
• Provides port mirror (many-to-1)
• Port mirroring to monitor the incoming or outgoing trafficon a particular port
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Compatible with Cisco Uni-directional link detection(UDLD)that monitors a link between two media converters and blocksthe ports on both ends of the link if the link fails at any point between the two devices
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• Supports maximum 32 static routes and route summarization
• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8 priority queues on all ports
• Traffic classification:
– IEEE 802.1p CoS
– IP TOS/DSCP/IP precedence
– IP TCP/UDP port number
– Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and In/Out bandwidth control on each port
• Traffic-policing on all ports
• DSCP remarking
• Voice VLAN
• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD snooping v1 and v2
• Querier mode support
• IPv4 IGMP snooping port filtering
• IPv6 MLD snooping port filtering
• Multicast VLAN Registration (MVR) support
• Authentication:
– IEEE 802.1x Port-based/MAC-based network access authentication
– Built-in RADIUS client to co-operate with the RADIUS servers
– TACACS+ login users access authentication
– RADIUS/TACACS+ users access authentication
• Access Control List:
– IP-based Access Control List (ACL)
– MAC-based Access Control List
• Source MAC/IP address binding
• DHCP Snooping to filter un-trusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IP address access management to prevent unauthorized intruder
• IPv4 and IPv6 dual stack management
• Management Interfaces:
– Console/Telnet Command Line Interface
– Web HTTP/HTTPS management
– SNMP v1, v2c, and v3 management
-SSHv2 and TLSv1.2 secure access
• IPv6 IP Address/NTP/DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
