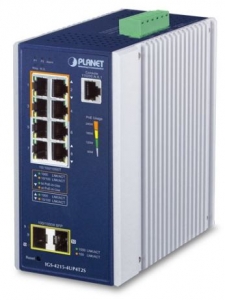

PLANET PLANET-IGS-4215-4UP4T2S on teollisuuskäyttöön ssuunniteltu 12-porttinen hallittava 10/100/1000 Ultra PoE++Ethernet-kytkin laajennetulla käyttölämpötila-alueella sekä DIN-kiskokiinnityksellä.

Kytkin on varustettu 8x 10/100/1000Base-T kupariporteilla, joista 4x on varustettu Ultra PoE++ virransyöttötuella. Kytkimessä on lisäksi 2x Gigabitin SFP-moduulipaikkaa.

Kytkin on varustettu ”PD keep-alive” ominaisuudella, jolla se pystyy itsenäisesti tarkistamaan esim. IP-kameran tilan ping-komennolla ja tekemään portille automaattisen virtakäynnistyksen (PoE OFF -> PoE ON).

Tekniset tiedot:
• 4x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE802.3bt PoE++ Injector function
• 4x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
• 2x 100/1000BASE-X SFP slots for SFP type auto detection
• 1x RJ45 console interface for basic management and setup
• Complies with IEEE 802.3bt Power over Ethernet Plus Type-4PSE
• Backward compatible with IEEE 802.3af/at PD device
• Up to 4 ports of IEEE 802.3af/802.3at/802.3bt PoE++ devices powered
• 240W PoE budget
• Supports PoE power up to 95W for each PoE port
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters in standard mode and250m in extend mode
• PoE management
• Total PoE power budget control
• Per port PoE function enable/disable
• PoE port power feeding priority
• Per PoE port power limitation
• PD classification detection
• Intelligent PoE features
• PD alive check
• PoE schedule
• Industrial Hardened Design
• 48…54VDC, redundant power with reverse polarity protection
• DIN-rail and wall-mount designs
• IP30 aluminum case
• Supports 6KV DC Ethernet ESD protection
• -40…+75C operating temperature
• Layer 2 Features
• Supports VLAN
• IEEE 802.1Q tagged VLAN
• Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
• Protocol VLAN
• Voice VLAN
• Private VLAN (Protected port)
• Management VLAN
• GVRP
• Supports Spanning Tree Protocol
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
• STP BPDU Guard, BPDU Filtering and BPDU Forwarding
• Supports Link Aggregation
• IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• Cisco ether-channel (static trunk)
• Maximum 5 trunk groups, up to 8 ports per trunk group
• Provides port mirror (many-to-1)
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Link Layer Discovery Protocol (LLDP)
• Quality of Service
• Ingress/Egress Rate Limit per port bandwidth control
• Traffic classification
• IEEE 802.1p CoS
• IP TCP/UDP port number
• Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and In/Out bandwidth control on each port
• Traffic-policing on the switch port
• DSCP remarking
• Multicast
• Supports IPv4 IGMP snooping v2, v3
• Supports IPv6 MLD snooping v1, v2
• IGMP querier mode support
• IGMP snooping port filtering
• MLD snooping port filtering
• Security
• Storm Control support
• Broadcast/ unknown multicast/unknown unicast
• Authentication
• IEEE 802.1X port-based network access authentication
• Built-in RADIUS client to cooperate with the RADIUS servers
• DHCP Relay and DHCP Option 82
• RADIUS/TACACS+ users access authentication
• Access Control List
• IPv4/IPv6 IP-based ACL
• IPv4/IPv6 IP-based ACE
• MAC-based ACL
• MAC-based ACE
• MAC Security
• Static MAC
• MAC filtering
• Port security for source MAC address entries filtering
• DHCP snooping to filter distrusted DHCP messages
• Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
• IP source guard prevents IP spoofing attacks
• DoS attack prevention
• Management
• IPv4 and IPv6 dual stack management
• Switch Management Interface
• Web switch management
• Console/Telnet Command Line Interface
• SNMP v1 and v2c switch management
• SSHv2, TLSv1.2 and SNMP v3 secure access
• SNMP Management
• SNMP trap for interface Link Up and Link Down notification
• Four RMON groups (history, statistics, alarms and events)
• User privilege levels control
• Built-in Trivial File Transfer Protocol (TFTP) client
• Static and DHCP for IP address assignment
• System Maintenance
• Firmware upload/download via HTTP/TFTP
• Configuration upload/download through HTTP/TFTP
• Dual images
• Hardware reset button for system reboot or reset to factory default
• SNTP Network Time Protocol
• Network Diagnostic
• Cable diagnostics
• ICMPv6/ICMPv4 Remote Ping
• SFP-DDM (Digital Diagnostic Monitor)
• Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
• Event message logging to remote syslog server
• PLANET Smart Discovery Utility for deployment management
• PLANET NMS system and CloudViewer for deployment management
