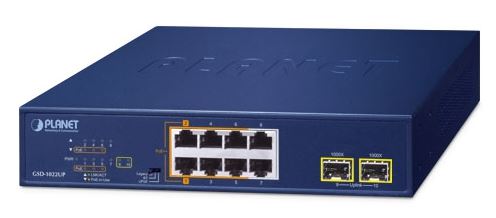

PLANET GSD-1022UP on metallikoteloitu 10-porttinen GigabitinUltra PoE-kytkin (802.3bt), jonka porteista 2x on varustettuUltra PoE ja 4x High PoE virransyöttötuella. Kytkimessä lisäksi kaksi Gigabitin kupari- sekä SFP-porttia. Kytkimen PoE-virransyötön kokonaiskapasiteetti on 180W.

Tekniset tiedot:
• 2x 10/100/1000BASE-T Gigabit RJ45 copper with IEEE 802.3btPoE++ injector function
• 4x 10/100/1000BASE-T Gigabit RJ45 copper with IEEE 802.3atPoE+ injector function
• 2x 10/100/1000BASE-T Gigabit RJ45 copper interfaces
• 2x 1000BASE-X SFP interfaces
• Complies with IEEE 802.3af/at/bt Power over Ethernet end- span PSE
• 2x ports for IEEE 802.3bt PDs and 4 ports for IEEE 802.3af/at PDs
• Supports PoE power up to 95W for PoE ports 1 to 2, 32 watts for PoE ports 3 to 6
• Each port supports 56VDC power to PoE PD
• 180W PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Supports PoE in BT, Legacy and UPoE mode
• Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
• Flow control for full duplex operation and back pressure for half duplex operation
• Integrates address look-up engine, supporting 4K absolute MAC addresses
• Automatic address learning and address aging
• 9k jumbo frame supports all speeds (10/100/1000Mbps)
• 9″ desktop size, 1U height, rack mountable, wall-mountableLED indicators for PoE ready/activity and LINK/ACT
• 1x silent fan to provide stable and efficient power performance
• Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
