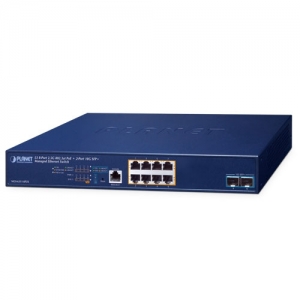

PLANET PLANET-MGS-6311-8P2X on 10-porttinen hallittava PoE+ kytkin 150W virransyöttökapasiteetilla, jossa on 8x 100/1000/2500 kupariporttia sekä 2x 1G/10G SFP/SFP+ kuituporttia.

Tekniset tiedot:
• 8x 10/100/1000/2500BASE-T ports with 32W 802.3at PoE+ injector function
• 2x 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE- SX/LX/BX SFP
• RJ45 to DB9 console interface for switch basic management and setup
• IP routing protocol supports RIPv1/v2, OSPFv2
• Routing interface provides per VLAN routing mode
• Supports route redistribution
• Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz Gigabit Ethernet standard
• Prevents packet loss flow control
• IEEE 802.3x pause frame flow control in full-duplex mode
• Back pressure flow control in half-duplex mode
• High performance Store-and-Forward architecture, broadcaststorm control, port loopback detection
• 16k MAC address table, automatic source address learning and aging
• Supports VLAN
• IEEE 802.1Q tag-based VLAN
• GVRP for dynamic VLAN management
• Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
• Private VLAN Edge (PVE) supported
• GVRP protocol for Management VLAN
• Protocol-based VLAN
• MAC-based VLAN
• IP subnet VLAN
• Supports Link Aggregation
• Maximum 64 trunk groups, up to 8 ports per trunk group
• IEEE 802.3ad LACP (Link Aggregation Control Protocol)
• Cisco ether-channel (static trunk)
• Supports Spanning Tree Protocol
• STP, IEEE 802.1D (Classic Spanning Tree Protocol)
• RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
• MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
• Supports BPDU & root guard
• Port mirroring to monitor the incoming or outgoing trafficon a particular port (many to many)
• Provides port mirror (many-to-1)
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)
• Quality of Service
• 8 priority queues on all switch ports
• Support for strict priority and WRR (Weighted Round Robin)
• CoS policies
• Traffic classification
• IEEE 802.1p CoS/ToS
• IPv4/IPv6 DSCP
• Port-based WRR
• Strict priority and WRR CoS policies
• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD v1 and v2 snooping
• Querier mode support
• Supports Multicast VLAN Register (MVR)
• IEEE 802.1x port-based network access authentication
• MAC-based network access authentication
• Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
• TACACS+ login users access authentication
• IP-based Access Control List (ACL)
• MAC-based Access Control List
• Supports DHCP snooping
• Supports ARP inspection
• IP Source Guard prevents IP spoofing attacks
• Dynamic ARP Inspection discards ARP packets with invalid
• MAC address to IP address binding
• Management IP for IPv4 and IPv6
• Switch Management Interface
• Console/Telnet Command Line Interface
• Web switch management
• SNMP v1, v2c, and v3 switch management
• SSHv2/TLSv1.2 secure access
• BOOTP and DHCP for IP address assignment
• Firmware upload/download via TFTP or HTTP Protocol for
• IPv4 and IPv6
• SNTP (Simple Network Time Protocol) for IPv4 and IPv6
• User privilege levels control
• Syslog server for IPv4 and IPv6
• Supports DDM
• Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
• Supports sFlow
• Supports ULDP
• Supports ULPP (Uplink Protection Protocol)
• Supports ULSM (Uplink State Monitor protocol)
• Supports LLDP/LLDP MED
• Supports DHCP Option82/43/60/61/67
• Supports ping, trace route function for IPv4 and IPv6
• PLANET Smart Discovery Utility for deployment management
• Complies with IEEE 802.3at/af Power over Ethernet Plus
• Up to 8 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE power up to 32 watts for each PoE port
• Supports maximum 150W PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters
• PoE management
• Total PoE power budget control
• Per port PoE function enable/disable
• PoE port power feeding priority
• Per PoE port power limitation
• PD classification detection
• PoE schedule
