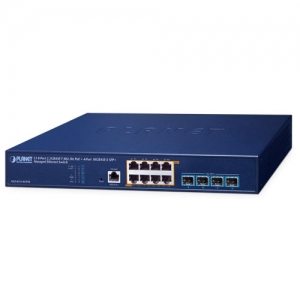

PLANET MGS-6311-8UP4X on hallittava teollisuustason Layer 3
-kytkin, jossa on 8x 10/100/1000/2500BASE-T Ethernet- kupariporttia ja 4x 1G/2.5G/10GBASE-X SFP+ -uplink- moduulipaikkaa. Se tukee IEEE 802.3bt PoE++ -standardia ja tarjoaa jopa 95W per portti, yhteensä 240W PoE-budjetilla.

Kytkin sisältää kattavat Layer 3 -reititysominaisuudet, kuten staattisen reitityksen, RIP- ja OSPF-protokollat sekä VRRP-tuen, ja sen 10Gbit/s SFP+ -kuituportit mahdollistavat joustavan ja suuren kapasiteetin kuituyhteyden. L2/L4-tason ominaisuuksiin kuuluvat VLAN-tekniikat (802.1Q, Q-in-Q, Private VLAN, GVRP), linkkiaggregaatiot, MSTP-pohjainen silmukkasuojaus, IGMP/MLD-valvonta sekä kehittynyt QoS kahdeksalla prioriteettijonolla. Turvallisuusominaisuudet, kuten 802.1X-autentikointi, MAC-pohjainen tunnistus, ACL-säännöt, DHCP-valvonta, IP Source Guard ja ARP-valvonta, suojaavat verkkoa tehokkaasti.Hallinta onnistuu web-käyttöliittymän, konsolin, Telnetin, SSH:n ja SNMPv3:n kautta, ja laite tukee myös PLANET NMS- jaCloudNMS-järjestelmiä keskitettyyn valvontaan.

MGS-6311-8UP4X on suunniteltu yritysverkkojen runkokerrokseen, korkean suorituskyvyn PoE-sovelluksiin ja modernien WiFi-verkkojen tarpeisiin.

Pakkaus sisältää kytkimen lisäksi virtakaapelin, RJ45-RS232
-konsolikaapelin ja englanninkielisen pikaoppaan.

Tekniset tiedot:
• 8x 10/100/1000/2500BASE-T RJ45 copper ports with 95W 802.3bt PoE++ injector function
• 4x 10GBASE-SR/LR SFP+ slots, compatible with 1G/2.5G BASE-SX/LX/BX SFP
• 1x RJ45 to DB9 console interface for switch basic management and setup
• Complies with IEEE 802.3bt/at Power over Ethernet Plus
• Up to 8 ports of IEEE 802.3bt/at devices powered
• Supports PoE power up to 95 watts for each PoE port
• Supports maximum 240-watt PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters
• PoE management:
– Total PoE power budget control
– Per port PoE function enable/disable
– PoE port power feeding priority
– Per PoE port power limitation
– PD classification detection
– PoE schedule
• IPv4 routing protocol supports RIPv1/v2 and OSPFv2
• IPv6 routing protocol supports RIPng and OSPFv3
• Routing interface provides per VLAN routing mode
• Supports route redistribution
• Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3an Gigabit Ethernet standard
• Prevents packet loss flow control:
– IEEE 802.3x pause frame flow control in full-duplex mode
– Back pressure flow control in half-duplex mode
• High performance Store-and-Forward architecture, broadcaststorm control, port loopback detection
• 16K MAC address table, automatic source address learning and aging
• Supports VLAN:
– IEEE 802.1Q tag-based VLAN
– GVRP for dynamic VLAN management
– Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
– Private VLAN Edge (PVE) supported
– GVRP protocol for Management VLAN
– Protocol-based VLAN
– MAC-based VLAN
– IP subnet VLAN
• Supports Link Aggregation:
– Maximum 64 trunk groups, up to 8 ports per trunk group
– IEEE 802.3ad LACP (Link Aggregation Control Protocol)
– Cisco ether-channel (static trunk)
• Supports Spanning Tree Protocol:
– STP, IEEE 802.1D (Classic Spanning Tree Protocol)
– RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
– MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
– Supports BPDU & root guard, BPDU Filtering and BPDU Forwarding
• Port mirroring to monitor the incoming or outgoing trafficon a particular port (many to many)
• Provides port mirror (many-to-1)
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)
• 8 priority queues on all switch ports
• Support for strict priority and WRR (Weighted Round Robin)CoS policies
• Traffic classification:
– IEEE 802.1p CoS/ToS
– IPv4/IPv6 DSCP
– Port-based WRR
• Strict priority and WRR CoS policies
• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD v1 and v2 snooping
• Querier mode support
• Supports Multicast VLAN Register (MVR)
• IEEE 802.1x port-based network access authentication
• MAC-based network access authentication
• Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
• TACACS+ login users access authentication
• IP-based Access Control List (ACL)
• MAC-based Access Control List
• Supports DHCP snooping
• Supports ARP inspection
• IP Source Guard prevents IP spoofing attacks
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• Management IP for IPv4 and IPv6
• Switch Management Interface:
– Console/Telnet Command Line Interface
– Web switch management
– SNMP v1, v2c, and v3 switch management
– SSHv2/TLSv1.2 secure access
• BOOTP and DHCP for IP address assignment
• Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
• SNTP (Simple Network Time Protocol) for IPv4 and IPv6
• User privilege levels control
• Syslog server for IPv4 and IPv6
• Supports DDM
• Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
• Supports sFlow
• Supports ULDP
• Supports ULPP (Uplink Protection Protocol)
• Supports ULSM (Uplink State Monitor protocol)
• Supports LLDP/LLDP MED
• Supports DHCP Option82/43/60/61/67
• Supports ONVIF device discovery and device quick link.
• Supports ping, trace route function for IPv4 and IPv6
• PLANET Smart Discovery Utility for deployment management
