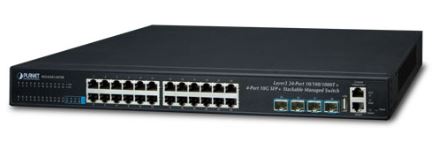

PLANET SGS-6341-24T4X on pinottava 28-porttinen Layer 3 – tason kytkin, jossa on 24x 10/100/1000Base-T -kupariporttia sekä 4x 10GBase-SR/LR SFP+ -moduulipaikkaa uplink- yhteyksille.

Kytkin tarjoaa 128 Gbit/s kytkentäkankaan ja 95 Mpps läpivientinopeuden, mikä mahdollistaa suuren kapasiteetin jaluotettavan tiedonsiirron yritysverkkojen runkokerroksessa ja datakeskuksissa.

Laite tukee IPv4/IPv6-reititystä, mukaan lukien staattinen reititys, RIP ja OSPF, sekä IP-stacking-toimintoa, jonka avulla jopa 24 kytkintä voidaan hallita yhden IP-osoitteen kautta. VLAN-ominaisuudet kattavat IEEE 802.1Q, Q-in-Q, Private VLANit sekä MAC- ja protokollapohjaiset VLANit. QoS-toiminnot sisältävät kahdeksan prioriteettiluokkaa, WRR/Strict Priority -ajastuksen ja liikenteen muotoilun. Turvaominaisuuksiin kuuluvat ACL, 802.1X porttipohjainen todennus, DHCP Snooping ja IP Source Guard. Redundanssia varten kytkin tukee MSTP:tä, rengastopologioita ja nopeaa palautumista, mikä varmistaa verkon jatkuvan toiminnan myös vikatilanteissa.

Tuotepakkaus sisältää SGS-6341-24T4X-kytkimen sisäisellä 100…240VAC virtalähteellä, virtajohdon, RJ45-DB9- konsolikaapelin, räkkikiinnikkeet, kumitassut, SFP- pölysuojat sekä englanninkielisen pikaoppaan.

Tekniset tiedot:
• 24x 10/100/1000BASE-T RJ45 copper ports
• 4x 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE- SX/LX/BX SFP
• 1x RJ45 to DB9 console interface for switch basic management and setup
• 1x USB2.0 interface for configuration and firmware storage
• IP Stacking:
– Connects with stack member via Gigabit TP, SFP and 10G SFP+ interfaces
– Single IP address management, supporting up to 24 IP unitsstacked together
• Hardware Stacking:
– Virtualized multiple SGS-6341 series stacked into one logical facility
– Connects with stack members via assigned 10G SFP+ interfaces
– Single IP address stack management, supporting up to 4 hardware units stacked together
– Stacking architecture supports redundant Ring mode
• IP routing protocol supports RIPv1/v2, RIPng, OSPFv2/v3, BGP4/4+
• Routing interface provides per VLAN routing mode
• VRRPv1/v3 protocol for redundant routing deployment
• Supports route redistribution
• Supports hardware-based wire-speed VLAN routing
• Supports PIM-DM (Protocol Independent Multicast – Dense Mode) and PIM-SM (Protocol Independent Multicast – Sparse Mode) and PIM-SSM (Protocol Independent Multicast – Source Specific Multicast)
• Supports DVMRP (Distance Vector Multicast Routing Protocol) Supports IGMP v1/v2/v3 and MLD v1/v2
• Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,
• IEEE 802.3z Gigabit Ethernet standard
• Supports auto-negotiation and half-duplex/full-duplex modes for all 10BASE-T, 100BASE-TX and 1000BASE-T ports
• Auto-MDI/MDI-X detection on each RJ45 port
• Prevents packet loss flow control:
– IEEE 802.3x pause frame flow control in full-duplex mode
– Back pressure flow control in half-duplex mode
• High performance Store-and-Forward architecture, broadcaststorm control, port loopback detection
• 16K MAC address table, automatic source address learning and aging
• Supports VLAN:
– IEEE 802.1Q tag-based VLAN
– GVRP for dynamic VLAN management
– Up to 256 VLANs groups, out of 4041 VLAN IDs
– Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
– Private VLAN Edge (PVE) supported
– GVRP protocol for Management VLAN
– Protocol-based VLAN
– MAC-based VLAN
– IP subnet VLAN
• Supports Link Aggregation:
– Maximum 128 trunk groups, up to 8 ports per trunk group
– IEEE 802.3ad LACP (Link Aggregation Control Protocol)
– Cisco ether-channel (static trunk)
• Supports Spanning Tree Protocol
– STP, IEEE 802.1D (Classic Spanning Tree Protocol)
– RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
– MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
– Supports BPDU & root guard
• Port mirroring to monitor the incoming or outgoing trafficon a particular port (many to many)
• Provides port mirror (many-to-1)
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)
• 8 priority queues on all switch ports
• Support for strict priority and WRR (Weighted Round Robin)CoS policies
• Traffic classification:
– IEEE 802.1p CoS/ToS
– IPv4/IPv6 DSCP
– Port-based WRR
• Strict priority and WRR CoS policies
• Supports IPv4 IGMP snooping v1, v2 and v3; IPv6 MLD v1 andv2 snooping
• Querier mode support
• Supports Multicast VLAN Register (MVR)
• IEEE 802.1x port-based network access authentication
• MAC-based network access authentication
• Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
• TACACS+ login users access authentication
• IP-based Access Control List (ACL)
• MAC-based Access Control List
• Supports DHCP snooping
• Supports ARP inspection
• IP Source Guard prevents IP spoofing attacks
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• Management IP for IPv4 and IPv6
• Switch Management Interface:
– Console/Telnet Command Line Interface
– Web switch management
– SNMP v1, v2c, and v3 switch management
– SSH/SSL secure access
• BOOTP and DHCP for IP address assignment
• Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
• SNTP (Simple Network Time Protocol) for IPv4 and IPv6
• User privilege levels control
• Syslog server for IPv4 and IPv6
• Supports DDM
• Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
• Supports sFlow
• Supports ULDP
• Supports ULPP (Uplink Protection Protocol)
