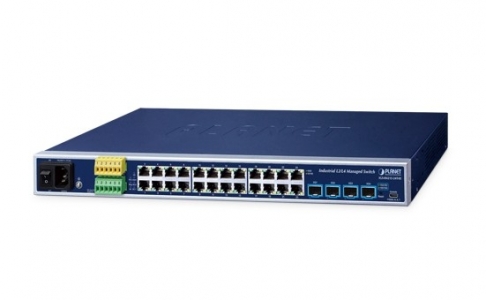

PLANET IGS-R4215-24T4X on teollisuuskäyttöön suunniteltu hallittu Ethernet -kytkin, joka tarjoaa 24x 10/100/1000BASE-T RJ45-porttia ja 4x 10GBASE-X SFP+ – porttia.

IGS-R4215-24T4X on suunniteltu vaativiin teollisuusympäristöihin ja sen erinomainen lämpötilan sietokyky takaa luotettavan toiminnan haastavissakin olosuhteissa. Kytkin tukee IPv6/IPv4-dual stack -hallintaa, Layer 3 -tason staattista reititystä, sekä Ethernet Ring Protection Switching (ERPS) -teknologiaa, joka mahdollistaa nopean verkon palautumisen vikatilanteissa. Lisäksi laitteessa on kaksi digitaalista sisääntuloa ja kaksi ulostuloa, jotka mahdollistavat mm. ulkoisten hälytyssensorien hallinnan.

Tekniset tiedot:
• 24x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
• 4x 10GBASE-SR/LR SFP+ slots, backward compatible with 100/1G/2.5GBASE-X SFP transceivers
• 1x USB Type C console interface for basic management and setup
• One 100..240VAC or dual 24 to 60VDC power input, redundant power with reverse polarity protection
– Active-active redundant power failure protection
– Backup of catastrophic power failure on one supply
– Fault tolerance and resilience
• 19″ rack-mountable design
• IP30 metal case
• Supports EFT protection for 6kVDC power and 6kVDC EthernetESD protection
• -40…+75C operating temperature for DC power input
• -10…+60C operating temperature for AC power input
• 2x digital input (DI)
• 2x digital output (DO)
• Integrate sensors into auto alarm system
• Transfer alarm to IP network via SNMP trap
• Hardware-based 10/100Mbit/s (half/full duplex), 1000Mbit/s(full duplex mode), auto-negotiation, and auto MDI/MDI-X
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 16k MAC address table size
• 12k jumbo frame
• Automatic address learning and address aging
• Supports CSMA/CD protocol
• Supports maximum 32 static routes and route summarization
• Routing interface provides per VLAN routing mode
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• High performance Store and Forward architecture, broadcaststorm control, and runt/CRC filtering that eliminates erroneous packets so as to optimize the network bandwidth
• Supports VLAN
– IEEE 802.1Q tagged VLAN
– Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) support
– Protocol VLAN
– Voice VLAN
– Private VLAN (Protected port)
– Management VLAN
– GVRP
• Supports Spanning Tree Protocol
– STP (Spanning Tree Protocol)
– RSTP (Rapid Spanning Tree Protocol)
– MSTP (Multiple Spanning Tree Protocol)
– STP BPDU Guard, BPDU Filtering and BPDU Forwarding
• Supports Link Aggregation
– IEEE 802.3ad Link Aggregation Control Protocol (LACP)
– Cisco ether-channel (Static Trunk)
– Maximum 8 trunk groups, up to 8 ports per trunk group
• Provides port mirror (many-to-1)
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Link Layer Discovery Protocol (LLDP)
• Ingress/Egress Rate Limit per port bandwidth control
• Traffic classification
– IEEE 802.1p CoS
– TOS/DSCP/IP Precedence of IPv4/IPv6 packets
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports IPv4 IGMP snooping v2 and v3
• Supports IPv6 MLD snooping v1, v2
• IGMP querier mode support
• IGMP snooping port filtering
• MLD snooping port filtering
• Storm Control support
– Broadcast / Multicast / Unknown Unicast
• Authentication
– Built-in RADIUS client to co-operate with the RADIUS servers
– DHCP Option 82
– RADIUS/TACACS+ login user access authentication
• Access Control List
– IPv4/IPv6 IP-based ACL
– IPv4/IPv6 IP-based ACE
– MAC-based ACL
– MAC-based ACE
• MAC Security
– Static MAC
– MAC Filtering
• Port Security for Source MAC address entries filtering
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• DoS Attack Prevention
• IPv4 and IPv6 dual stack management
• Switch Management Interface
– Web switch management
– Console/Telnet Command Line Interface
– SNMP v1 and v2c switch management
– SSHv2, TLSv1.2 and SNMP v3 secure access
• SNMP Management
– SNMP trap for interface Link Up and Link Down notification
– Four RMON groups (history, statistics, alarms, and events)
• User Privilege Levels Control
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
– Firmware upload/download via HTTP/TFTP
– Configuration upload/download through HTTP/TFTP
– Dual Images
– Hardware reset button for system reboot or reset to factory default
• SNTP Network Time Protocol
• Network Diagnostic
– Cable Diagnostics
– ICMPv6/ICMPv4 Remote Ping
– SFP-DDM (Digital Diagnostic Monitor)
• Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
• Event message logging to remote Syslog server
• PLANET Smart Discovery Utility for deployment management
• PLANET NMS system and NMSViewerPro/CloudViewerPro App for deployment management
• Enclosure: IP30 metal case
• Dimensions (WxDxH): 444 x 200 x 44.2mm, 1U height
• Weight: 2826g
• Power Requirements: 24..60VDC, 1.5A (max.), 100..240VAC, 50/60Hz, 1A (max.)
• Power Consumption/ Dissipation DC:
