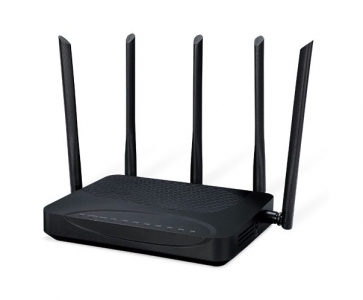

PLANET GPN-400ACV on GPON/EPON Wi-Fi ONU -päätelaite, joka on varustettu 1x GPON-portilla, 4x 10/100/1000 Ethernet- portilla ja 1x FXS RJ11-liitännällä (VoIP tuki).

GPN-400ACV tarjoaa GPON-kuituyhteyden ansiosta jopa 2.5Gbit/s latausnopeuden ja 1.25Gbit/s lähetysnopeuden. Laitetessa on suuren suorituskyvyn 3000M 802.11b/g/n/ac/ax -standardin mukainen monikäyttöinen WiFi- tukiasema ja siinä on myös USB-portti tiedostojen jakoa varten (Samba).

Tekniset tiedot:
• 1x SC/UPC type GPON port (compatible with EPON)
• 4x 10/100/1000 Mbit/s Gigabit Ethernet ports
• 1x USB A 2.0 port
• 1x FSX RJ11 port, supporting SIP and H.248 protocols
• 5x external antennas (for 2.4GHz and 5GHz)
• Up to 2.5Gbit/s downstream and 1.25Gbit/s upstream
• Maximum data transmission of up to 20km
• Optical transmit power: 0.5..5dBm
• Supports ITU-T G.984 / G.988, IEEE802.3ah standards
• Automatic switching between EPON and GPON for hybrid deployment
• 802.1Q VLAN, and QoS for virtual LAN tagging and traffic prioritization
• Broadcast storm protection to prevent and limit broadcast traffic
• Bandwidth control to manage and allocate network bandwidth
• IGMP snooping/proxy for efficient multicast traffic management
• IPv4 and IPv6 protocols supported
• Compatible with voice codecs including G.711, G.729 and G.723
• Supports T.38 and G.711 pass-through for fax
• Compatible with 802.11ax Wi-Fi 6
• Up to 3000Mbit/s bandwidth
• Backward compatible with 802.11b/g/n/ac
• Compatible to equipment working on 2.4GHz and 5GHz
• IEEE 802.3x flow control for full-duplex communication
• Queue scheduling algorithms including WRR, Strict Priority, and FIFO
• IGMP snooping v1/v2/v3
• IGMP proxy function
• Firewall with MAC/IP/Port/URL/Domain filtering
• DDoS attack protection
• Dynamic Bandwidth Allocation (DBA) support
• IEEE 802.3x flow control
• WR, SP, and FIFO queue scheduling algorithms for traffic management
• Port-based VLAN and IEEE 802.1Q VLAN
• Firewall like MAC/IP/Port/URL/Domain filtering
• DDoS protection to safeguard against distributed denial- of-service attacks
• Loop detection to prevent network loops
• Dying-gasp mechanism for graceful device shutdown
• Type B dual-homing protection
• Web, Telnet, TR-069, OMCI, and OAM remote management
• Firmware upgrade via TFTP, Web, TR-069, and OLT
• Buttons: Power, Reset, WLAN, WPS, LED
• Power Requirements: 12V DC, 1.5A max.
• Power Consumption: 18W max.
• Dimensions (WxDxH): 244.3 x 162.15 x 193mm
• Weight: 500g
• Operating Temperature: 0…+50C
