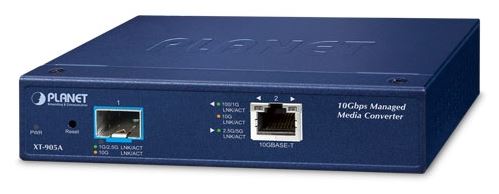

PLANET XT-905A on hallittava 10G mediamuunnin, jossa on RJ- 45- kupariportin lisäksi yksi SFP/SFP+ moduulipaikka.

Moduulipaikkaan voidaan laittaa halutun tyyppinen 10G/2.5G/1G/100BASE-X SFP-moduuli, jolloin laitteesta saadaan kupari-kuitumuunnin kaikentyyppisille ja nopeuksilsille valokuiduille.

Tuotepakkaus sisältää mediamuuntimen, asennusohjeen sekä virtalähteen.

Tekniset tiedot:
• 1x 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
• 1x 10G/2.5G/1G/100BASE-X SFP+ interface
• Storm Control support
• Broadcast / Multicast / Unknown Unicast
• Supports VLAN
• IEEE 802.1Q tagged VLAN
• Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
• Up to 256 VLAN groups, out of 4096 VLAN IDs
• Supports ITU-T G.8032 ERPS ring with recovery time less than 500ms (software-based)
• Link Layer Discovery Protocol (LLDP)
• 16k MAC address table with auto-aging
• Jumbo Frame support up to 12k in size
• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8x priority queues on all converter ports
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Traffic classification
• IEEE 802.1p CoS
• IP TOS / DSCP / IP Precedence
• IP TCP/UDP port number
• Typical network application
• IPv4 and IPv6 dual stack management
• Support Link Fault Pass-through
• Management Interfaces
• Web HTTP/HTTPS management
• Telnet Command Line Interface
• SNMPv1, v2c, v3 monitoring
• SSHv2, TLSv1.2
• System Maintenance
• Firmware upload/download via HTTP
• Reset button for system reboot or reset to factory default
• Dual images
• Simple Network Time Protocol (SNTP)
• User privilege levels control
• SNMP Management
• SNMP trap for interface link up and link down notification
• Four RMON groups (history, statistics, alarms and events)
• Network Diagnostic
• SFP-DDM (Digital Diagnostic Monitor)
• Syslog remote alarm
• Local system Log
• ICMPv6 / ICMPv4 remote ping
• PLANET Smart Discovery Utility for convenient deployment
• PLANET Remote Management
• PLANET NMS Controller and CloudViewer app for central management
• IP address access management to prevent unauthorized intruder
• Static MAC setting and MAC Filtering
• External 12VDC, 1.5A power adapter
• 0…+50C operating temperature
• Supports 4kVDC Contact/8kVDC Air Ethernet ESD protection
• Wall mount and DIN-rail installation (optional)
