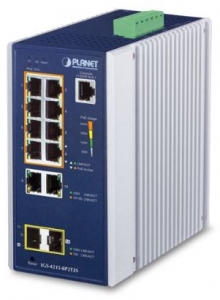

PLANET IGS-4215-8P2T2S on teollisuuskäyttöön suunniteltu 12-porttinen hallittava 10/100/1000 PoE+ Ethernet-kytkin laajennetulla käyttölämpötila-alueella sekä DIN-kiskokiinnityksellä. Kytkin on varustettu 8x 10/100/1000Base-T PoE+ kupariporteilla. Kytkimessä on lisäksi 2x Gigabitin kupariporttia sekä SFP-moduulipaikkaa valokuitumoduleille.

Kytkin on varustettu “PD keep-alive” ominaisuudella, jolla kytkin pystyy itsenäisesti tarkistamaan esim. IP-kameran tilan ping-komennolla ja tekemään portille automaattisen virtakäynnistyksen (PoE OFF -> PoE ON).

Tekniset tiedot: – 8x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE802.3at/af PoE+ Injector function(Ports 1 to 8) – 2x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (Ports 9 to 10) – 2x 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection (Ports 11 to 12) – 1x RJ45 console interface for basic management and setup – Complies with IEEE 802.3at Power over Ethernet Plus, end- span PSE – Backward compatible with IEEE 802.3af Power over Ethernet – Up to 8 ports of IEEE 802.3af/802.3at devices powered – 240W PoE budget – Supports PoE power up to 36 watts for each PoE port – Auto detects powered device (PD) – Circuit protection prevents power interference between ports – Remote power feeding up to 100 meters in standard mode and250m in extend mode – PoE management – Total PoE power budget control – Per port PoE function enable/disable – PoE port power feeding priority – Per PoE port power limitation – PD classification detection – Intelligent PoE features – PD alive check – PoE schedule – Industrial Case and Installation – IP30 aluminum case – DIN rail and wall-mount design – 48…54VDC, redundant power with reverse polarity protection – Supports 6000VDC Ethernet ESD protection – -40…+75C operating temperature – Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X – IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation – 8k MAC address table size – 10k jumbo frame – Automatic address learning and address aging – Supports VLAN – IEEE 802.1Q tagged VLAN – Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support – Protocol VLAN – Voice VLAN – Private VLAN (Protected port) – Management VLAN – GVRP – Supports Spanning Tree Protocol – STP (Spanning Tree Protocol) – RSTP (Rapid Spanning Tree Protocol) – MSTP (Multiple Spanning Tree Protocol) – STP BPDU Guard, BPDU Filtering and BPDU Forwarding – Supports Link Aggregation – IEEE 802.3ad Link Aggregation Control Protocol (LACP) – Cisco ether-channel (static trunk) – Maximum 6 trunk groups, up to 8 ports per trunk group – Provides port mirror (many-to-1) – Loop protection to avoid broadcast loops – Supports ERPS (Ethernet Ring Protection Switching) – Link Layer Discovery Protocol (LLDP) – Quality of Service – Ingress/Egress Rate Limit per port bandwidth control – Traffic classification – IEEE 802.1p CoS – TOS/DSCP/IP precedence of IPv4/IPv6 packets – Strict priority and Weighted Round Robin (WRR) CoS policies – Multicast – Supports IPv4 IGMP snooping v2, v3 – Supports IPv6 MLD snooping v1, v2 – IGMP querier mode support – IGMP snooping port filtering – MLD snooping port filtering – Security – Storm Control support – Broadcast/ unknown multicast/unknown unicast – Authentication – IEEE 802.1X port-based network access authentication – Built-in RADIUS client to cooperate with the RADIUS servers – DHCP Option 82 – RADIUS/TACACS+ authentication – Access Control List – IPv4/IPv6 IP-based ACL – IPv4/IPv6 IP-based ACE – MAC-based ACL – MAC-based ACE – MAC Security – Static MAC – MAC filtering – Port security for source MAC address entries filtering – DHCP snooping to filter distrusted DHCP messages – Dynamic ARP inspection discards ARP packets with invalid – MAC address to IP address binding – IP source guard prevents IP spoofing attacks – DoS attack prevention – Management – IPv4 and IPv6 dual stack management – Switch Management Interface – Web switch management – Console/Telnet Command Line Interface – SNMP v1 and v2c switch management – SSHv2, TLSv1.2 and SNMP v3 secure access – SNMP Management – SNMP trap for interface Link Up and Link Down notification– Four RMON groups (history, statistics, alarms and events) – User privilege levels control – Built-in Trivial File Transfer Protocol (TFTP) client – Static and DHCP for IP address assignment – System Maintenance – Firmware upload/download via HTTP/TFTP – Configuration upload/download through HTTP/TFTP – Dual images – Hardware reset button for system reboot or reset to factory default – SNTP Network Time Protocol – Network Diagnostic – Cable diagnostics – ICMPv6/ICMPv4 Remote Ping – SFP-DDM (Digital Diagnostic Monitor) – Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED– Event message logging to remote syslog server – PLANET Smart Discovery Utility for deployment management – PLANET NMS system and CloudViewer for deployment management
