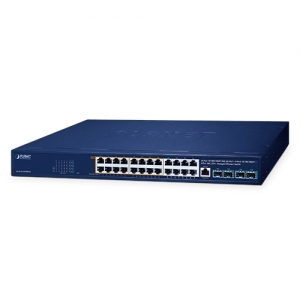

PLANET GS-4210-16UP8T4X on hallittava Layer 3 -tason kytkin, jossa on 16x 10/100/1000BASE-T 802.3bt PoE++-porttia, 8x 10/100/1000BASE-T-porttia sekä 4x 10G SFP+-porttia.

GS-4210-16UP8T4 tukee jopa 95W tehoa per PoE-portti (IEEE 802.3bt Type 4) ja tarjoaa kokonaispoe-budjetin 420 wattia, mikä tekee siitä erinomaisen ratkaisun vaativiin sovelluksiin, kuten PTZ-kameroihin, langattomiin tukiasemiin, infonäyttöihin ja PoE-valaistukseen.

Kytkin tukee IPv4/IPv6-hallintaa, kehittyneitä suojausominaisuuksia (ACL, 802.1X, DHCP Snooping, IP Source Guard) sekä rengassuojausta (ITU-T G.8032 ERPS) ja MSTP:tä. ONVIF-tuki helpottaa IP-valvontalaitteiden hallintaa, ja PoE-hallintaominaisuudet, kuten PD Alive Check, ajastettu virrankierrätys ja PoE-aikataulutus, parantavat luotettavuutta ja energiatehokkuutta.

Tuotepakkaus sisältää kytkimen lisäksi, RS-232 – RJ45 -sarjakaapelin, kumitassut, 19″ räkkikiinnikkeet, virtajohdon sekä englanninkielisen pikaoppaan.

Tekniset tiedot:
• 16x 10/100/1000BASE-T ports with 95W 802.3bt PoE++ injector function (Ports 1 to 16)
• 8x 10/100/1000BASE-T ports (Ports 17 to 24)
• 4x 10GBASE-SR/LR SFP+ slots, backward compatible with 100/1G/2.5GBASE-X SFP transceivers (Ports XG1 to XG4)
• 1x RJ45 to DB9 console interface for switch basic management and setup
• Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 16K MAC address table size
• 12K jumbo frame
• Automatic address learning and address aging
• Compliant with IEEE 802.3bt Power over Ethernet Plus Plus
• 16 ports supporting IEEE 802.3bt PoE++ with each offering up to 95 watts (ports 1-16)
• Total PoE power budget of 420 watts
• Automatic detection of powered devices (PD)
• Built-in circuit protection to prevent power interference between ports
• Remote power feeding up to 100 meters in standard mode and250 meters in extend mode
• Advanced PoE management capabilities:
– Total PoE power budget control
– Per port PoE function enable/disable
– PoE port power feeding priority
– Per PoE port power limitation
– Detection of PD classification
• Intelligent PoE features:
– PD alive check
– PoE schedule
– Scheduled power recycling
• Supports VLAN
– IEEE 802.1Q tagged VLAN
– Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
– Protocol VLAN
– Private VLAN (Protected port)
– Management VLAN
– GVRP
• Supports Spanning Tree Protocol
– STP (Spanning Tree Protocol)
– RSTP (Rapid Spanning Tree Protocol)
– MSTP (Multiple Spanning Tree Protocol)
– STP BPDU Guard, BPDU Filtering and BPDU Forwarding
• Supports Link Aggregation
– IEEE 802.3ad Link Aggregation Control Protocol (LACP)
– Cisco ether-channel (static trunk)
– Maximum 8 trunk groups, up to 8 ports per trunk group
• Supports port mirror (many-to-1)
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Link Layer Discovery Protocol (LLDP)
• Ingress and egress rate limit per port bandwidth control
• Storm control support:
– Broadcast/Unknown unicast/Unknown multicast
• Traffic classification:
– IEEE 802.1p CoS
– TOS/DSCP/IP precedence of IPv4/IPv6 packets
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports IPv4 IGMP snooping v2 and v3
• Supports IPv6 MLD snooping v1, v2
• IGMP querier mode support
• IGMP snooping port filtering
• MLD snooping port filtering
• Authentication:
– Built-in RADIUS client to cooperate with the RADIUS servers
– RADIUS/TACACS+ login user access authentication
– DHCP Option 82
• Access control list:
– IPv4/IPv6 IP-based ACL
– IPv4/IPv6 IP-based ACE
– MAC-based ACL
– MAC-based ACE
• MAC security
– Static MAC
– MAC filtering
• Port security for source MAC address entries filtering
• DHCP snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP source guard prevents IP spoofing attacks
• DoS attack prevention
• IPv4 and IPv6 dual stack management
• Switch management interface
– Web switch management
– Console and telnet command line interface
– SNMP v1 and v2c switch management
– SSHv2, TLSv1.2 and SNMP v3 secure access
• SNMP Management
– Four RMON groups (history, statistics, alarms and events)
– SNMP trap for interface link up and link down notification
• User privilege levels control
• Built-in Trivial File Transfer Protocol (TFTP) client
• Static and DHCP for IP address assignment
• System maintenance:
– Firmware upload/download via HTTP/TFTP
– Configuration upload/download through HTTP/TFTP
– Dual images
– Hardware-based reset button for system reboot or reset to factory default
• SNTP Network Time Protocol
• Network Diagnostic:
– SFP-DDM (digital diagnostic monitor)
– Cable diagnostics
– ICMPv4/ICMPv6 remote ping
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• Event message logging to remote syslog server
• PLANET Smart Discovery Utility for deployment management
• PLANET NMS, NMSViewerPro and CloudViewerPro for deploymentmanagement
• Fan: 2 smart fans
• PoE Power Output: Port 1 to 16 95W (max.)
• Power Requirements: 100…240VDC, 50/60Hz
• PoE Power Budget: 420W (max)
• Power Consumption / Dissipation: Maximum 476W / 1624.02 BTU (full load)
• Dimensions: 441.1 x 207.5 x 44.2mm
