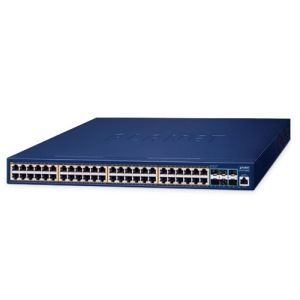

PLANET GS-6311-48P6X on 54-porttinen hallittava Layer 3 – tason kytkin, jossa on 48x 10/100/1000BASE-T 802.3at PoE+-porttia sekä 6x 10GBASE-SR/LR SFP+-porttia.

GS-6311-48P6X tukee jopa 30W tehoa per PoE-portti (IEEE 802.3at) ja tarjoaa 600W kokonaispoe-budjetin, mikä riittää laajalle joukolle IP-kameroita, langattomia tukiasemia, VoIP-puhelimia ja muita PoE-laitteita.

Kytkin tukee IPv4/IPv6-hallintaa, kehittyneitä suojausominaisuuksia (ACL, 802.1X, DHCP Snooping, IP Source Guard) sekä rengassuojausta ITU-T G.8032 ERPS ja MSTP-protokollia. ONVIF-tuki helpottaa IP-valvontalaitteidentunnistamista ja hallintaa, ja 10G-uplinkit mahdollistavat suuren kaistanleveyden runkoverkkoyhteydet.

PoE-hallintaominaisuudet, kuten PD Alive Check, ajastettu virrankierrätys ja PoE-aikataulutus, parantavat verkon luotettavuutta ja vähentävät huoltotarvetta.

Tuotepakkaus sisältää kytkimen lisäksi, RS-232-RJ45 – sarjakaapelin, kumitassut, 19″ räkkikiinnikkeet, virtajohdon sekä englanninkielisen pikaoppaan.

Tekniset tiedot:
• 48x 10/100/1000BASE-T ports with 30W 802.3at PoE+ injectorfunction
• 6x 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE- SX/LX/BX SFP
• 1x RJ45 to DB9 console interface for switch basic management and setup
• IP routing protocol supports RIPv1/v2, OSPFv2
• Routing interface provides per VLAN routing mode
• Supports route redistribution
• Supports IGMP v1/v2/v3 and MLD v1/v2
• Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard
• Prevents packet loss flow control:
– IEEE 802.3x pause frame flow control in full-duplex mode
– Back pressure flow control in half-duplex mode
• High performance Store-and-Forward architecture, broadcaststorm control, port loopback detection
• 32K MAC address table, automatic source address learning and aging
• Supports VLAN:
– IEEE 802.1Q tag-based VLAN
– GVRP for dynamic VLAN management
– Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
– Private VLAN Edge (PVE) supported
– GVRP protocol for Management VLAN
– Protocol-based VLAN
– MAC-based VLAN
– IP subnet VLAN
• Supports Link Aggregation:
– Maximum 64 trunk groups, up to 8 ports per trunk group
– IEEE 802.3ad LACP (Link Aggregation Control Protocol)
– Cisco ether-channel (static trunk)
• Supports Spanning Tree Protocol:
– STP, IEEE 802.1D (Classic Spanning Tree Protocol)
– RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
– MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
– Supports BPDU & root guard
• Port mirroring to monitor the incoming or outgoing trafficon a particular port (many to many)
• Provides port mirror (many-to-1)
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)
• 8 priority queues on all switch ports
• Support for strict priority and WRR (Weighted Round Robin)CoS policies
• Traffic classification:
– IEEE 802.1p CoS/ToS
– IPv4/IPv6 DSCP
– Port-based WRR
• Strict priority and WRR CoS policies
• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD v1 and v2 snooping
• Querier mode support
• Supports Multicast VLAN Register (MVR)
• IEEE 802.1x port-based network access authentication
• MAC-based network access authentication
• Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
• TACACS+ login users access authentication
• IP-based Access Control List (ACL)
• MAC-based Access Control List
• Supports DHCP snooping
• Supports ARP inspection
• IP Source Guard prevents IP spoofing attacks
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• Management IP for IPv4 and IPv6
• Switch Management Interface:
– Console/Telnet Command Line Interface
– Web switch management
– SNMP v1, v2c, and v3 switch management
– SSHv2/TLSv1.2 secure access
• BOOTP and DHCP for IP address assignment
• Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
• SNTP (Simple Network Time Protocol) for IPv4 and IPv6
• User privilege levels control
• Syslog server for IPv4 and IPv6
• Supports DDM
• Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
• Supports sFlow
• Supports ULDP
• Supports ULPP (Uplink Protection Protocol)
• Supports ULSM (Uplink State Monitor protocol)
• Supports LLDP/LLDP MED
• Supports DHCP Option82/43/60/61/67
• Supports ping, trace route function for IPv4 and IPv6
• PLANET Smart Discovery Utility for deployment management
• Complies with IEEE 802.3at/af Power over Ethernet Plus
• Up to 48 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE power up to 30 watts for each PoE port
• 110VAC supports maximum 500-watt PoE budget
• 220VAC supports maximum 600-watt PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters
• PoE management
– Total PoE power budget control
– Per port PoE function enable/disable
– PoE port power feeding priority
– Per PoE port power limitation
– PD classification detection
• Intelligent PoE features
– PD alive check
– PoE schedule
• Fan: 5pcs
• PoE Power Output: 30W (max)
• Power Requirements: 100…240VAC, 50/60Hz
• PoE Power Budget:
– 500W / 110VAC
– 600W / 220VAC
• Power Consumption / Dissipation:
– 39.9W / 136BTU (System)
– 698W/ 2380BTU (System+PoE)
• Dimensions: 440 x 330 x 44.5mm
• Weight: 5368g
• Operating Temperature: 0…+50C
