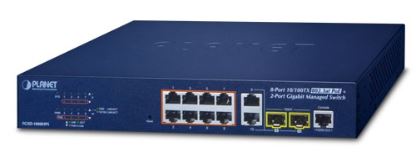

PLANET FGSD-1008HPS on SNMP-hallittava PoE+ kytkin 120W virransyöttökapasiteetilla. Kytkimen 10:stä portista 8x on varustettu PoE+ virransyöttötuella. Kytkimessä on lisäksi 2x Gigabitin Ethernet / SFP-porttia.

Tekniset tiedot:
• 8x 10/100BASE-TX RJ45 copper ports with IEEE 802.3at/af PoE+ injector function
• 2x 10/100/1000BASE-T Gigabit RJ45 copper ports
• 2x 100/1000BASE-X SFP slots, shared with port-9 to port-10
• Reset button for system factory default
• Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation, and auto MDI/MDI-X
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• Automatic address learning and address aging
• Supports CSMA/CD protocol
• Complies with IEEE 802.3at Power over Ethernet Plus
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 8 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE Power up to 30 watts for each PoE port
• 120W PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 250m via extend mode
• PoE Management
• Per port PoE function enable/disable
• Per Port PoE operation mode selection
• Per PoE port power budget control
• PD classification detection and PoE consumption usage status
• Intelligent PoE features
• PD alive check
• PoE port sequence
• PoE schedule
• Prevents packet loss with back pressure (half-duplex) and
• IEEE 802.3x pause frame flow control (full-duplex)
• High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Port-based VLAN, up to 10 VLAN groups
• IEEE 802.1Q tagged VLAN
• Protocol VLAN
• Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
• GVRP
• Voice VLAN
• Supports Spanning Tree Protocol
• STP (IEEE 802.1D Spanning Tree Protocol)
• RSTP (IEEE 802.1w Rapid Spanning Tree Protocol)
• MSTP (IEEE 802.1s Multiple Spanning Tree Protocol)
• STP BPDU filtering, BPDU Guard
• Supports Link Aggregation
• IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• 1 LACP group, up to 2 ports per LACP group
• Cisco ether-channel (static trunk)
• 1 trunk group, up to 2 ports per trunk group
• Provides port mirror (many-to-1)
• Loop detection
• Quality of Service
• Ingress/Egress Rate Limit per port bandwidth control
• Storm Control support
• Broadcast/ Multicast /DLF (Destination Lookup Fail)/ARP/ICMP
• Traffic classification
• IEEE 802.1p Qos/CoS
• TCP/UDP/DSCP/IP precedence of IPv4/IPv6 packets
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports IPv4 IGMP snooping v1/ v2 and v3
• Supports IPv6 MLD snooping v1, v2
• Security
• Access Control List
• IPv4/IPv6 IP-based ACL
• MAC-based ACL
• Port-MAC-IP Address Binding
• Port-MAC-IP Port Setting
• Port-MAC-IP Entry Setting
• MAC Address Binding
• Static MAC
• MAC Filtering
• DHCP snooping to filter distrusted DHCP messages
• ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• Management
• IPv4 and IPv6 dual stack management
• Switch management interface
• Web switch management
• Telnet command line interface
• SNMP v1, v2c and v3
• BOOTP and DHCP for IP address assignment
• System maintenance
• Firmware upgrade via HTTP
• Configuration upload/download through web interface
• Hardware-based reset button for system reset to factory default
• SNTP Network Time Protocol
• Link Layer Discovery Protocol (LLDP)
• Event message logging to remote Syslog server
• PLANET Smart Discovery utility
