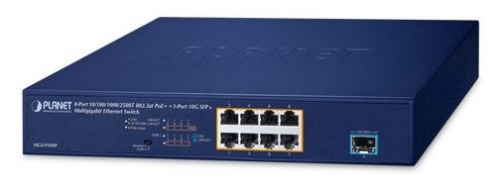

PLANET MGS-910XP on metallikoteloitu High PoE-kytkin kahdeksalla 10/100/1000/2500Base-T PoE+ porttilla ja yhdellä10GBase-T SFP+ portilla. Kytkimen PoE- virransyöttökapasiteetti on 120W.

Tekniset tiedot:
• 8x 10/100/1000/2500BASE-T RJ45 copper ports with 802.3at PoE+ injector function
• 1x 10GBASE-X SFP+ port
• Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T and IEEE 802.3bz 2500 BASE-T Ethernet standards
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• Integrated address look-up engine, supporting 4K absolute MAC addresses
• 12k jumbo packet support
• Hardware-based DIP switch for Standard or VLAN mode selection;
•- VLAN mode: Ports 1…8 cannot communicate with each other, but can communicate with the uplink port 9
• Power saving ability for Green networking
• IEEE 802.1Q VLAN packet transparency support
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• Automatic address learning and address aging
• Complies with IEEE 802.3at Power over Ethernet Plus end- span PSE
• Up to 8 ports of IEEE 802.3af / 802.3at devices powered (ports 1…8)
• Supports PoE power up to 32 watts for each PoE port, with a total PoE budget of 120W.
• Each port supports 54VDC power to PoE powered device.
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports.
• Remote power feeding up to 100m in standard mode with 250min extend mode
• 0…+50C operating temperature
• 100…240VAC, 3A, 50/60Hz universal power input
• 12″ desktop size, 19″ rack mountable for user-friendly installation
• LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act
• 1x fan to provide stable and efficient power performance
• Supports contact discharge of 6kV DC and air distance discharge of ±8KV DC for Ethernet ESD protection
• Supports 6kV surge immunity
