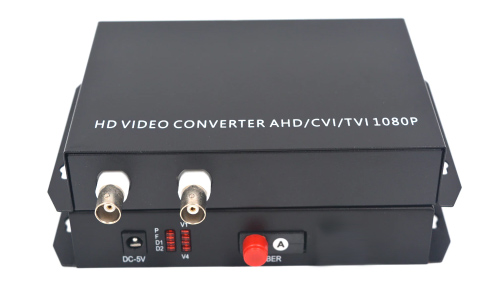

PrimeDa HM-2V0D-S1080P on Video-over-Fiber -kitti, joka mahdollistaa kahden kamerasignaalin (AHD/TVI/CVI) siirtämisen yhtä singlemode-valokuitua pitkin jopa 20km etäisyydelle (Multimode 300m). Kitissä on sekä lähetys- ettävastaanottopään laitteet sekä virtalähteet.

Käyttökohteet:
• Security Systems
• Radio and television transmission
• HD Video monitoring
• Building control systems
• Train/High speed road monitoring
• Intelligent Traffic Monitoring System (ITS)
• Remote multimedia teaching / campus monitoring
• Long-distance radio and television transmission system

Tekniset tiedot:
• TVI: 1080P (1920×1080), 960P (1280×960), 720P (1280×720)
• CVI :1080P (1920×1080), 960P (1280×960), 720P (1280×720)
• AHD :1080P (1920×1080), 960P (1280×960), 720P (1280×720)
• Optical Interface : FC
• Fiber optic: Singlemode (9/125um), Multimode
• Wavelength: 1310/1550um
• Applicable fiber optic: singlemode, and compatiable with multimode fiber
• Transmission distance:
– Singlemode fiber 0…20km
– Multimode fiber 0…300m
• Video : 2 channel
• Video Interface: BNC
• Support 1280H and 1920H HD video format
• Support 1280×720, 1280×960, 1920×1080 @ 25/30/50/60Hz
• Support 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f, 1920H/25f, 1920H/30f HD format
• Coaxial cable transmission length:
– 1080p up to 300m
– 720p up to 500m
• Video Input / Output Impedance : 75 Ohm (unbalanced)
• Video Bandwidth 100MHz
• Video format compatible PAL, NTSC, SECAM
• The sender input level:>500mVp-p
• The receiver output level: 1Vp-p
• Input and output impedance: 75 ohm
• The receiver rise and fall times: <0.8ns
• The receiver maximum jitter: <0.2 UI
• Power Adapter: 100…240VAC 5VDC@2A
• Mean Time between failures:>100000 h

Tuotepaketin sisältö:
• 1 Channel Video Transmitter
• 1 Channel Video Receiver
• 2x Power supply
• User manual
