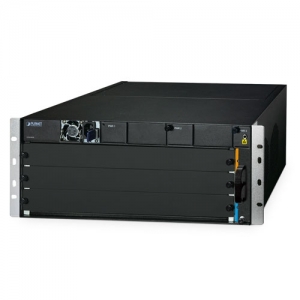

PLANET CS-6303R on kolmipaikkainen kytkinrunko, joka toimii laajennettavana alustana erikseen asennettaville hallinta- ja kytkinmoduuleille. Rungossa itsessään ei ole kytkinominaisuuksia, vaan laitteen toiminnallisuus määräytyytäysin siihen asennettavien moduulien mukaan.

CS-6303R tukee jopa kahta hallintamoduulia ja kahta kytkinmoduulia. Paikat 2 ja 3 on tarkoitettu hallintamoduuleille, kun taas paikat 1 ja 2 tukevat kytkinmoduuleja – mahdollistaen joustavan kokoonpanon esimerkiksi yhdellä hallintamoduulilla ja kahdella kytkinmoduulilla tai kahdella hallintamoduulilla. Hallinta onnistuu muun muassa web-käyttöliittymän, Telnetin, konsoliportin ja SNMP:n kautta. Kytkinrunko voidaan varustaa jopa kolmella AC- ja DC- virtalähteillä, mikä takaa laitteen toiminnan keskeytyksettä myös virtalähteen vikatilanteissa.

Muunneltava rakenne ja hot-swap-tuki tekevät CS-6303R:stä erinomaisen ratkaisun monipuolisiin ja laajennettaviin verkkoympäristöihin.

Pakkaus sisältää keskusyksikön yhdellä 350W AC- virtalähteellä, RJ45-DB9 -kaapelin, Mini USB – konsolikaapelin, virtajohdon, etupaneelin kaapeliohjaimen, 2x kaapeliohjaimen ruuvia, maadoituskaapelin, 4x räkkiruuvia, 4x ruuvin korkkia ja englanninkielisen pikaoppaan. Tekniset tiedot:
• 3x open module slots:
– Up to 2 Management Modules (Slot 2 and Slot 3)
– Up to 2 Switch Modules (Slot 1 and Slot 2)
• Hot-swappable switching modules
• 1x RJ45 serial console interface on Management Module for switch basic management and setup
• MGMT port on Management Module for HTTP server access
• 3 power slots
• 100..240VAC and 36..72VDC power redundancy
• Active-active redundant power failure protection
• Backup of catastrophic power failure on one supply
• IPv4 Routing protocol supports RIP v1/v2, OSPFv2 and BGP4
• IPv6 Routing protocol supports RIPng, OSPFv3 and BGP4+
• Routing interface provides VLAN routing mode
• Policy-based Routing (PBR) for IPv4
• VRRP protocol for redundant routing deployment
• Supports route redistribution
• Supports Multicast Routing Protocols:
– PIM-DM (Protocol Independent Multicast – Dense Mode)
– PIM-SM (Protocol Independent Multicast – Sparse Mode)
– PIM-SSM (Protocol Independent Multicast – Source-Specific Multicast Mode)
• Supports IGMP v1/v2/v3
• Supports VLAN
– IEEE 802.1Q tag-based VLAN
– Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
– GVRP for dynamic VLAN management
– Private VLAN
• Supports Link Aggregation
– 802.3ad Link Aggregation Control Protocol (LACP)
– Cisco ether-channel (static trunk)
• Supports Spanning Tree Protocol
• STP, IEEE 802.1D (Classic Spanning Tree Protocol)
• RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
• MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
• Port mirroring to monitor the incoming or outgoing trafficon a particular port (many to 1)
• Loop protection to avoid broadcast loops
• Link Layer Discovery Protocol (LLDP)
• Ethernet OAM 802.3ah/802.1ag/ITU-Y.1731
• Ingress shaper and egress rate limit per port bandwidth control
• 8 priority queues on all switch ports
– IEEE 802.1p CoS/DSCP/Precedence
– VLAN ID
– Policy-based ingress and egress QoS
• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD snooping v1 and v2
• Querier mode support
• MVR (Multicast VLAN Registration)
• Authentication
– IEEE 802.1x port-based network access authentication
– Built-in RADIUS client to cooperate with the RADIUS servers
– RADIUS/TACACS+ users access authentication
• Access Control List
– IP-based Access Control List (ACL)
– MAC-based Access Control List (ACL)
– Time-based ACL
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
– Console and Telnet Command Line Interface
– HTTP web switch management
– SNMP v1 v2 v3 switch management
– SSHv2, SSLv3, TLSv1.2 and SNMP v3 secure access
• SNMP Management
– Four RMON groups (history, statistics, alarms, and events)
– SNMP trap for interface Link Up and Link Down notification
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
– Firmware upload/download via HTTP
– Reset button for system reboot
– Dual images
• DHCP Functions:
– DHCP Relay
– DHCP Option 82
– DHCP Server
• User Privilege levels control
• Network Time Protocol (NTP) and SNTP
• Network Diagnostic
– SFP-DDM (Digital Diagnostic Monitor)
– ICMP remote IP ping
• Syslog remote alarm
• System Log
• Virtualized multiple CS-6303R switch integrated into one logical device
• Single IP address stack management, supporting up to 2 hardware units stacked together
• Stacking architecture supports redundancy Ring mode
• Total Port Capacity:
– 120x 10/100/1000BASE-T Max
– 120x 11000BASE-X SFP Ports Max
– 40x 10G SFP+ Ports Max
– 8x 40G QSFP+ Ports Max
– 48x GPON Ports max.
• Number of Fan Trays: 1 hot-pluggable (2 axial fans)
• Dimensions: 482.6 x 376.2 x 178.2mm (with rack-mount kit) 4U high
• Weight:
– 11kg (empty)
– 14.4kg (Chassis with 1 AC power module and 1 management module)
• Power Requirement:
– AC Input 100..240VAC, 5A Max 50..60 Hz
– DC Input 36..72VDC, 12.7A Max
• Power Consumption: <350W
• Operating temperature: 0..50C
