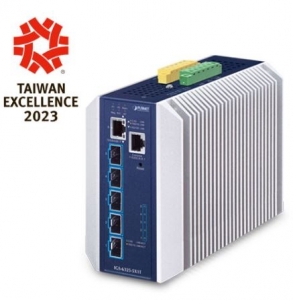

PLANET IGS-6325-5X1T on 6-porttinen 10 Gigabitin hallittava DIN-kiskoon asennettava Ethernet-kytkin laajennetulla käyttölämpötila-alueella.

Layer 3 -tason kytkin on varustettu 5x 1G/2.5G/5G/10G SFP/SFP+ -moduulipaikalla sekä 1x 1G/2.5G/5G/10G – kupariportilla.

Tekniset tiedot:
• 1x 100/1G/2.5G/5G/10GBASE-T RJ45 copper port
• 5x 10GBASE-SR/LR SFP+ slots, compatible with 1G/2.5GBASE-XSFP
• 1x RJ45-to-RS232 console interface for basic management and setup
• Industrial Hardened Design
• Dual power input, redundant power with reverse polarity protection
• DC 9 to 48V input or AC 24V input
• Active-active redundant power failure protection
• Backup of catastrophic power failure on one supply
• Fault tolerance and resilience
• DIN-rail and wall-mountable designs
• IP30 aluminum case
• Supports 6000VDC Ethernet ESD protection
• -40…+75C operating temperature
• Digital Input and Digital Output
• 2x digital input (DI)
• 2x digital output (DO)
• Integrates sensors into auto alarm system
• Transfers alarm to IP network via email and SNMP trap
• Layer 3 IP Routing Features
• IPv4 dynamic routing protocol supports RIPv2 and OSPFv2 and IPv6 OSPFv3
• IPv6 dynamic routing protocol supports OSPFv3
• IPv4/IPv6 hardware static routing
• Routing interface provides per VLAN routing mode
• Layer 2 Features
• High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Storm control support
• Broadcast/Multicast/Unknown unicast
• Supports VLAN
• IEEE 802.1Q tagged VLAN
• Supports provider bridging (VLAN Q-in-Q IEEE 802.1ad)
• Private VLAN Edge (PVE)
• Protocol-based VLAN
• MAC-based VLAN
• Voice VLAN
• GVRP (GARP VLAN Registration Protocol)
• Supports Spanning Tree Protocol
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
• BPDU Guard
• Supports Link Aggregation
• 802.3ad Link Aggregation Control Protocol (LACP)
• Cisco ether-channel (static trunk)
• Maximum 3 trunk groups, with 6 ports for each trunk
• Provides port mirror (many-to-1)
• Port mirroring to monitor the incoming or outgoing trafficon a particular port
• Loop protection to avoid broadcast loops
• Link Layer Discovery Protocol (LLDP)
• Compatible with Cisco uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)
• IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode
• Quality of Service
• Ingress shaper and egress rate limit per port bandwidth control
• 8x priority queues on all switch ports
• Traffic classification
• IEEE 802.1p CoS
• ToS/DSCP/IP Precedence of IPv4/Ipv6 packets
• IP TCP/UDP port number
• Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and In/Out bandwidth control on each port
• Traffic-policing on the switch port
• DSCP remarking
• Voice VLAN
• Multicast
• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD snooping v1 and v2
• Querier mode support
• IPv4 IGMP snooping port filtering
• IPv6 MLD snooping port filtering
• MVR (Multicast VLAN Registration)
• Security
• Authentication
• IEEE 802.1x port-based/MAC-based network access authentication
• IEEE 802.1x authentication with guest VLAN
• Built-in RADIUS client to cooperate with the RADIUS servers
• RADIUS/TACACS+ users access authentication
• Guest VLAN assigns clients to a restricted VLAN with limited services
• Access Control List
• IP-based Access Control List (ACL)
• MAC-based Access Control List (ACL)
• Source MAC/IP address binding
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid
• MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IP address access management to prevent unauthorized intruder
• Management
• IPv4 and IPv6 dual stack management
• Switch Management Interfaces
• Console and Telnet Command Line Interface
• HTTP web switch management
• SNMP v1 and v2c switch management
• SSHv2, TLSv1.2 and SNMPv3 secure access
• SNMP Management
• Four RMON groups (history, statistics, alarms, and events)
• SNMP trap for interface Link Up and Link Down notification
• IPv6 IP address/NTP/DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
• Firmware upload/download via HTTP
• Reset button for system reboot or reset to factory default
• Dual images
• DHCP Functions:
• DHCP Relay
• DHCP Option82
• DHCP Server
• User Privilege levels control
• Network Time Protocol (NTP)
• Network Diagnostic
• SFP-DDM (Digital Diagnostic Monitor)
• ICMPv6/ICMPv4 remote ping
• SMTP/Syslog remote alarm
• System Log
• PLANET Smart Discovery Utility for deployment management
• PLANET UNI-NMS (Universal Network Management) and
• CloudViewer app for deployment management
• Dimensions: 80x135x135mm
• Weight: 1550g
• Compliance: FCC Part 15 Class A, CE
