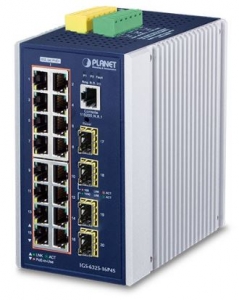

PLANET IGS-6325-16P4S on teollisuuskäyttöön suunniteltu 20- porttinen hallittava Layer 3 -tason PoE+ Ethernet-kytkin laajennetulla käyttölämpötila-alueella (-40…+75C). DIN- kiskoon asennettava laite on varustettu 16x 10/100/1000Base-T PoE+ -kupariportilla (802.3at, yhteensä jopa 360 W PoE-budjetti) sekä 4x 100/1000/2500Base-X SFP- moduulipaikoilla joustavia kuituyhteyksiä varten.

IGS-6325-16P4S tukee edistyneitä hallinta- ja turvaominaisuuksia, kuten ACL, 802.1X, SSHv2, TLS/SSL, DHCP Snooping ja IP Source Guard. Lisäksi se sisältää Modbus TCP
-tuen teollisuusautomaation integrointiin sekä IEEE 1588v2
-aikaprotokollatuen, joka mahdollistaa tarkan synkronoinnin aikakriittisissä sovelluksissa. Luotettavuutta lisäävät rengastopologia (ITU-T G.8032 ERPS), nopea vikasietoinen palautuminen (alle 10 ms) sekä kahdennettu virransyöttö (2x 48-56VDC), jotka yhdessä varmistavat verkon jatkuvan toiminnan kriittisissä sovelluksissa.

Tuotepakkaus sisältää IGS-6325-16P4S-kytkimen, DB9-RJ45 RS232 -konsolikaapelin, seinäasennussarjan, RJ45-pölysuojat (17 kpl), SFP-pölysuojat (4 kpl) sekä englanninkielisen pikaoppaan.

Tekniset tiedot
• 16x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector function
• 4x 100/1000/2500BASE-X SFP slots for SFP type auto detection
• 1x RJ45 console interface for basic management and setup
• Power over Ethernet
• Complies with IEEE 802.3at Power over Ethernet Plus/end- span PSE
• Up to 16x IEEE 802.3af/802.3at devices powered
• Supports PoE power up to 36W for each PoE port
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m
• PoE management features
• Total PoE power budget control
• Per port PoE function enable/disable
• PoE admin-mode control
• PoE port power feeding priority
• Per PoE port power limit
• PD classification detection
• Intelligent PoE features
• Temperature threshold control
• PoE usage threshold control
• PD alive check
• PoE schedule
• Industrial Protocol
• Modbus TCP for real-time monitoring in the SCADA system
• IEEE 1588v2 PTP (Precision Time Protocol)
• Industrial Case and Installation
• IP30 aluminum case
• DIN-rail or wall-mount design
• 48…56VDC, redundant power with reverse polarity protection
• Supports 6KV DC Ethernet ESD protection
• -40…75C operating temperature
• Digital Input and Digital Output
• 2 digital input (DI)
• 2 digital output (DO)
• Integrate sensors into auto alarm system
• Transfer alarm to IP network via email and SNMP trap
• Layer 2 Features
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Storm Control support
• Broadcast/Multicast/Unicast
• Supports VLAN
• IEEE 802.1Q tagged VLAN
• Up to 4K VLANs groups, out of 4094 VLAN IDs
• Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
• Private VLAN Edge (PVE)
• Protocol-based VLAN
• MAC-based VLAN
• Voice VLAN
• GVRP (GARP VLAN Registration Protocol)
• Supports Spanning Tree Protocol
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
• BPDU Guard
• Supports Link Aggregation
• 802.3ad Link Aggregation Control Protocol (LACP)
• Cisco ether-channel (static trunk)
• Maximum 10 trunk groups with 4 ports per trunk group
• Up to 8Gbps bandwidth (duplex mode)
• Provides port mirror (many-to-1)
• Port mirroring to monitor the incoming or outgoing trafficon a particular port
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Compatible with Cisco Uni-directional link detection(UDLD)that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
• Link Layer Discovery Protocol (LLDP)
• Layer 3 IP Routing Features
• Supports maximum 128 static routes and route summarization
• IPv4 dynamic routing protocol supports OSPFv2
• IPv4/IPv6 hardware static routing
• Routing interface provides per VLAN routing mode
• Quality of Service
• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8x priority queues on all switch ports
• Traffic classification
• IEEE 802.1p CoS
• IP TOS/DSCP/IP precedence
• IP TCP/UDP port number
• Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and In/Out bandwidth control on each port
• Traffic-policing on the switch port
• DSCP remarking
• Multicast
• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD snooping v1 and v2
• Querier mode support
• IPv4 IGMP snooping port filtering
• IPv6 MLD snooping port filtering
• MVR (Multicast VLAN Registration)
• Security
• Authentication
• IEEE 802.1x port-based / MAC-based network access authentication
• Built-in RADIUS client to co-operate with the RADIUS servers
• TACACS+ login users access authentication
• RADIUS / TACACS+ users access authentication
• Access Control List
• IP-based Access Control List (ACL)
• MAC-based Access Control List
• Source MAC / IP address binding
• DHCP Snooping to filter un-trusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid
