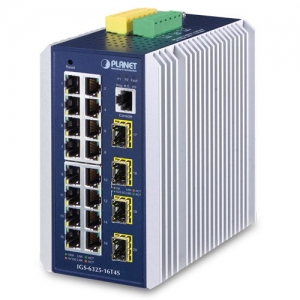

PLANET IGS-6325-16T4S on teollisuuskäyttöön suunniteltu 20-porttinen hallittava Layer 3 -tason Ethernet-kytkin laajennetulla käyttölämpötila-alueella (-40…+75C). DIN-kiskoon asennettava laite on varustettu 16x 10/100/1000Base-T kupariportilla sekä 4x 100/1000/2500Base-XSFP-moduulipaikalla joustavia kuituyhteyksiä varten.

Kytkin tukee edistyneitä hallinta- ja turvaominaisuuksia, kuten ACL, 802.1X, SSHv2, TLS/SSL, DHCP Snooping, IP Source Guard, ARP Inspection, RADIUS/TACACS+ sekä SNMPv3. Lisäksi se sisältää Modbus TCP -tuen teollisuusautomaation integrointiin sekä IEEE 1588v2 -aikaprotokollatuen, joka mahdollistaa tarkan synkronoinnin aikakriittisissä sovelluksissa. Luotettavuutta lisäävät rengastopologia (ITU-T G.8032 ERPS), nopea vikasietoinen palautuminen (alle 10 ms) sekä kahdennettu virransyöttö (2x 9-48VDC), jotka yhdessä varmistavat verkon jatkuvan toiminnan kriittisissä sovelluksissa.

Tuotepakkaus sisältää IGS-6325-16T4S-kytkimen, DB9-RJ45 RS23
-konsolikaapelin, seinäasennussarjan, RJ45-pölysuojat (17 kpl), SFP-pölysuojat (4 kpl) sekä englanninkielisen pikaoppaan.

Tekniset tiedot:
• 16x 10/100/1000BASE-T RJ45 copper ports
• 4x 100/1000/2500BASE-X SFP slots for SFP type auto detection
• 1x RJ45-to-RS232 console interface for basic management and setup
• Dual power input, redundant power with reverse polarity protection:
– 9…48VDC input or 24VAC input
– Active-active redundant power failure protection
– Backup of catastrophic power failure on one supply
– Fault tolerance and resilience
• DIN-rail and wall-mountable designs
• IP30 aluminum case
• Supports 6KV DC Ethernet ESD protection
• -40…+75C operating temperature
• 2 Digital Input (DI)
• 2 Digital Output (DO)
• Integrates sensors into auto alarm system
• Transfers alarm to IP network via email and SNMP trap
• IPv4 dynamic routing protocol supports OSPFv2
• IPv4/IPv6 hardware static routing
• Routing interface provides per VLAN routing mode
• High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Storm control support:
– Broadcast/Multicast/Unknown unicast
• Supports VLAN:
– IEEE 802.1Q tagged VLAN
– Up to 4K VLANs groups, out of 4095 VLAN IDs
– Supports provider bridging (VLAN Q-in-Q IEEE 802.1ad)
– Private VLAN Edge (PVE)
– Protocol-based VLAN
– MAC-based VLAN
– Voice VLAN
– GVRP (GARP VLAN Registration Protocol)
• Supports Spanning Tree Protocol
– IEEE 802.1D Spanning Tree Protocol (STP)
– IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
– IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
– BPDU Guard
• Supports Link Aggregation
– 802.3ad Link Aggregation Control Protocol (LACP)
– Cisco ether-channel (static trunk)
– Maximum 14 trunk groups, with 16 ports for each trunk
– Up to 80Gbps bandwidth (full duplex mode)
• Provides port mirror (many-to-1)
• Port mirroring to monitor the incoming or outgoing trafficon a particular port
• Loop protection to avoid broadcast loops
• Link Layer Discovery Protocol (LLDP)
• Compatible with Cisco uni-directional link detection(UDLD)that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)
• IEEE 1588 and Synchronous Ethernet network timing
• Ingress shaper and egress rate limit per port bandwidth control
• 8 priority queues on all switch ports
• Traffic classification:
– IEEE 802.1p CoS
– ToS/DSCP/IP Precedence of IPv4/IPv6 packets
– IP TCP/UDP port number
– Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Traffic-policing on the switch port
• DSCP remarking
• Voice VLAN
• Supports IPv4 IGMP snooping v1, v2 and v3
• Supports IPv6 MLD snooping v1 and v2
• Querier mode support
• IPv4 IGMP snooping port filtering
• IPv6 MLD snooping port filtering
• MVR (Multicast VLAN Registration)
• Authentication:
– IEEE 802.1X Port-based/MAC-based network access authentication
– IEEE 802.1x authentication with guest VLAN
– Built-in RADIUS client to cooperate with the RADIUS servers
– RADIUS/TACACS+ users access authentication
– Guest VLAN assigns clients to a restricted VLAN with limited services
• Access Control List:
– IP-based Access Control List (ACL)
– MAC-based Access Control List (ACL)
• Source MAC/IP address binding
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IP address access management to prevent unauthorized intruder
• IPv4 and IPv6 dual stack management
• Switch Management Interfaces:
– Console and Telnet Command Line Interface
– HTTP web switch management
– SNMP v1 and v2c switch management
– SSHv2, TLSv1.2 and SNMP v3 secure access SNMP Management:
– Four RMON groups (history, statistics, alarms, and events)
– SNMP trap for interface Link Up and Link Down notification
• IPv6 IP address/NTP/DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance:
– Firmware upload/download via HTTP
– Reset button for system reboot or reset to factory default
– Dual Images
• DHCP Relay
• DHCP Option 82
• DHCP Server
• User Privilege levels control
• Network Time Protocol (NTP)
