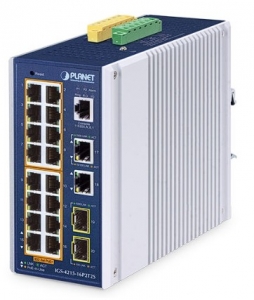

PLANET IGS-4215-16P2T2S on teollisuuskäyttöön suunniteltu 20-porttinen hallittava 10/100/1000 PoE+ Ethernet-kytkin laajennetulla käyttölämpötila-alueella sekä DIN- kiskokiinnityksellä.

Kytkin on varustettu 18x 10/100/1000Base-T portilla, joista 16x varustettu PoE+ -virransyöttötuella. Kytkimessä on lisäksi 2x SFP-moduulipaikkaa valokuitumoduuleille.

IGS-4215-16P2T2S:ssa on ”PD keep-alive” -ominaisuus, jolla kytkin pystyy itsenäisesti tarkistamaan esim. IP-kameran tilan ping-komennolla ja tekemään portille automaattisen virtakäynnistyksen (PoE OFF -> PoE ON).

Tekniset tiedot:
• 16x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at/af PoE+ Injector function
• 2x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
• 2x 100/1000BASE-X SFP slots for SFP type auto detection
• One RJ45 console interface for basic management and setup
• Complies with IEEE 802.3at Power over Ethernet Plus, end- span PSE
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 16 ports of IEEE 802.3af/802.3at devices powered 320W PoE budget
• Supports PoE power up to 36 watts for each PoE port
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters in standard mode and250m in extend mode
• PoE management
– Total PoE power budget control
– Per port PoE function enable/disable
– PoE port power feeding priority
– Per PoE port power limitation
– PD classification detection
• Intelligent PoE features
– Temperature threshold control
– PoE extension
– PD alive check
– PoE schedule
• Industrial Case and Installation
– IP30 aluminum case
– DIN rail and wall-mount design
– 48…54VDC, redundant power with reverse polarity protection
• Supports 6000V DC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
• Digital Input and Digital Output
– 2 digital input (DI)
– 2 digital output (DO)
• Integrate sensors into auto alarm system
• Transfer alarm to IP network via SNMP trap
• Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 8K MAC address table size
• 10K jumbo frame
• Automatic address learning and address aging
• Supports VLAN
– IEEE 802.1Q tagged VLAN
– Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support Protocol VLAN
– Voice VLAN
– Private VLAN (Protected port)
– Management VLAN
• GVRP
• Supports Spanning Tree Protocol
– STP (Spanning Tree Protocol)
– RSTP (Rapid Spanning Tree Protocol)
– MSTP (Multiple Spanning Tree Protocol)
– STP BPDU Guard, BPDU Filtering and BPDU Forwarding
• Supports Link Aggregation
– IEEE 802.3ad Link Aggregation Control Protocol (LACP)
– Cisco ether-channel (static trunk)
– Maximum 8 trunk groups, up to 8 ports per trunk group
• Provides port mirror (many-to-1)
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Link Layer Discovery Protocol (LLDP)
• Ingress/Egress Rate Limit per port bandwidth control
• Traffic classification
• IEEE 802.1p CoS
• TOS/DSCP/IP precedence of IPv4/IPv6 packets
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports IPv4 IGMP snooping v2, v3
• Supports IPv6 MLD snooping v1, v2
• IGMP querier mode support
• IGMP snooping port filtering
• MLD snooping port filtering
• Storm Control support
• Broadcast/ unknown multicast/unknown unicast
• Authentication
– IEEE 802.1X port-based network access authentication
– Built-in RADIUS client to cooperate with the RADIUS servers
– DHCP Option 82
– RADIUS/TACACS+ authentication
– Access Control List
– IPv4/IPv6 IP-based ACL
– IPv4/IPv6 IP-based ACE
– MAC-based ACL
– MAC-based ACE
• MAC Security
– Static MAC
– MAC filtering
– Port security for source MAC address entries filtering
• DHCP snooping to filter distrusted DHCP messages
• Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
• IP source guard prevents IP spoofing attacks
• DoS attack prevention
• Management
– IPv4 and IPv6 dual stack management
– Switch Management Interface
– Web switch management
– Console/Telnet Command Line Interface
– SNMP v1 and v2c switch management
– SSHv2, TLSv1.2 and SNMP v3 secure access
– SNMP Management
– SNMP trap for interface Link Up and Link Down notification
– Four RMON groups (history, statistics, alarms and events)
• User privilege levels control
• Built-in Trivial File Transfer Protocol (TFTP) client
• Static and DHCP for IP address assignment
• System Maintenance
• Firmware upload/download via HTTP/TFTP
• Configuration upload/download through HTTP/TFTP
• Dual images
• Hardware reset button for system reboot or reset to factory default
• SNTP Network Time Protocol
• Network Diagnostic
• Cable diagnostics
• ICMPv6/ICMPv4 Remote Ping
• SFP-DDM (Digital Diagnostic Monitor)
• Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
• Event message logging to remote syslog server
• PLANET Smart Discovery Utility for deployment management
• PLANET NMS system and CloudViewer/CloudViewerPro for deployment management
