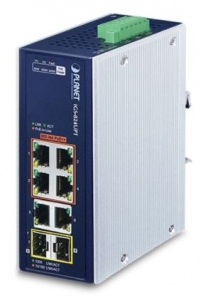

PLANET IGS-824UPT on teollisuuskäyttöön soveltuva 8- porttinen 10/100/1000 UltraPoE (4x UltraPoE++ porttia) Ethernet-kytkin kahdella 100/1000M SFP-moduulipaikalla, laajennetulla käyttölämpötila-alueella sekä DIN- kiskokiinnityksellä.

Tekniset tiedot:
• 6x 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
• 2x SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes
• Complies with IEEE 802.3bt Power over Ethernet Plus Plus type 4 PSE
• Backward compatible with IEEE 802.3at Power over Ethernet Plus
• Up to 4x of IEEE 802.3bt/at devices powered
• Up to 240W PoE budget
• Supports PoE power up to 95W for each PoE port
• Each port supports 48…54VDC power to PoE powered device
• Auto detects powered device (PD)
• Auto detects IEEE 802.3bt equipment and protects devices from being damaged by incorrect installation
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m
• IP30 aluminum case
• DIN-rail and wall-mount designs
• 48…54VDC redundant power with reverse polarity protection
• Fault alarm for power input failed
• Supports 6kVDC Ethernet ESD protection
• -40…+75C operating temperature
• 4x real-time PoE power usage indicators
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 4k MAC address table size
• 9k jumbo frame
• IEEE 802.1Q VLAN transparency
• Automatic address learning and address aging
• Supports CSMA/CD protocol
