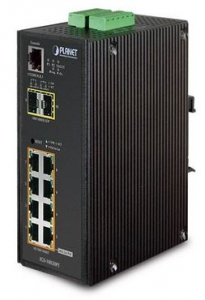

PLANET IGS-10020PT on teollisuuskäyttöön soveltuva 10- porttinen hallittava 10/100/1000 (8x TX + 2x SFP) PoE Ethernet-kytkin laajennetulla käyttölämpötila-alueella sekä DIN-kiskokiinnityksellä.

Kytkin on varustettu ”PD keep-alive” ominaisuudella, jolla kytkin pystyy itsenäisesti tarkistamaan esim. IP-kameran tilan ping-komennolla ja tekemään portille automaattisen virtakäynnistyksen (PoE OFF -> PoE ON).

Tekniset tiedot:
• 8x 10/100/1000Base-T Gigabit Ethernet RJ-45 with IEEE 802.3af PoE Injector
• 2x 100/1000/2500Base-X mini-GBIC/SFP slots, SFP type auto detection
• 1x RJ-45 console interface for basic management and setup
• Complies with IEEE 802.3at Power over Ethernet End-Span PSE
• Up to 8 IEEE 802.3af devices powered
• Supports PoE Power up to 36 watts
• Auto detects powered device (PD) PoE Power Budget 240W maximum (depending on power input)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100m
• PoE Management
– Total PoE power budget control
– Per port PoE function enable/disable
– PoE Admin-mode control
– PoE Port power feeding priority
– Per PoE port power limit
– PD classification detection
– Temperature Threshold Control
– PoE Usage Threshold Control
– PD Alive Check
– PoE Schedule
– PD Power Recycling Schedule
• IP30 Aluminum metal case protection
• DIN Rail and Wall Mount Design
• 48-56V DC, redundant power with polarity reverse protect function
• Supports EFT protection 6000 VDC for power line
• Supports 6000 VDC Ethernet ESD protection
• -40…+75C operating temperature
• Digital Input / Digital Output
• 2x Digital Input (DI)
• 2x Digital Output (DO)
• Integrate sensors into auto alarm system
• Transfer alarm to IP network via SNMP trap
• Prevents packet loss with back pressure (Half-Duplex) and
• IEEE 802.3x PAUSE frame flow control (Full-Duplex)
• High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Storm Control support
– Broadcast / Multicast / Unicast
• Supports VLAN
– IEEE 802.1Q Tagged VLAN
– Up to 255 VLANs groups, out of 4094 VLAN IDs
– Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
– Private VLAN Edge (PVE)
– Protocol-based VLAN
– MAC-based VLAN
– Voice VLAN
• Supports Spanning Tree Protocol
– STP, IEEE 802.1D Spanning Tree Protocol
– RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
– MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
– BPDU Guard
• Supports Link Aggregation
– 802.3ad Link Aggregation Control Protocol (LACP)
– Cisco ether-channel (Static Trunk)
– Maximum 5 trunk groups, up to 8 ports per trunk group
– Up to 16Gbps bandwidth (Duplex Mode)
• Provides Port Mirror (1-to-1)
– Port Mirroring to monitor the incoming or outgoing trafficon a particular port
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8x priority queues on all switch ports
• Traffic classification
– IEEE 802.1p CoS
– IP TOS / DSCP / IP Precedence
– IP TCP/UDP port number
– Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and In/Out bandwidth control on each port Traffic-policing policies on the switch port
• DSCP remarking
• Supports IGMP Snooping v1, v2 and v3
• Supports MLD Snooping v1 and v2
• Querier mode support
• IGMP Snooping port filtering
• MLD Snooping port filtering
• MVR (Multicast VLAN Registration)
• IEEE 802.1x Port-based / MAC-based network access authentication
• Built-in RADIUS client to co-operate with the RADIUS servers
• TACACS+ login users access authentication
• RADIUS / TACACS+ users access authentication
• IP-based Access Control List (ACL)
• MAC-based Access Control List
• Source MAC / IP address binding
• DHCP Snooping to filter untrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IP address access management to prevent unauthorized intruder
• Switch Management Interfaces
– Console / Telnet Command Line Interface
– Web switch management
– SNMP v1 and v2c switch management
– SSH / SSL and SNMP v3 secure access
• Four RMON groups (history, statistics, alarms, and events)
• IPv6 IP Address / NTP / DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• Firmware upload / download via HTTP / TFTP
• DHCP Relay
• DHCP Option 82
• User Privilege levels control
• NTP (Network Time Protocol)
• Link Layer Discovery Protocol (LLDP) Protocol
• SFP-DDM (Digital Diagnostic Monitor)
• Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
• Reset button for system reboot or reset to factory default
• PLANET Smart Discovery Utility for deploy management
